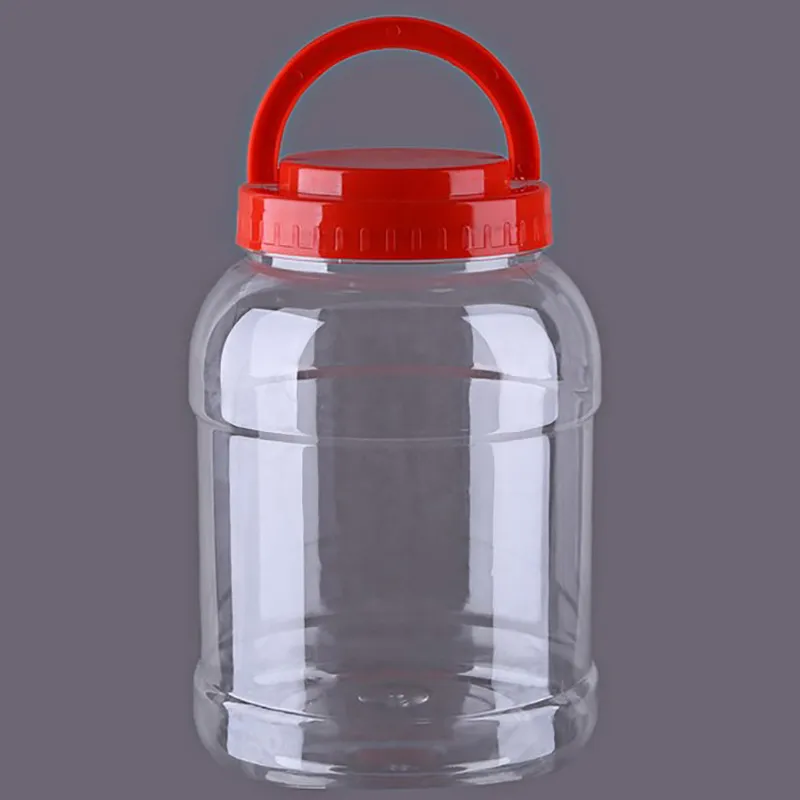

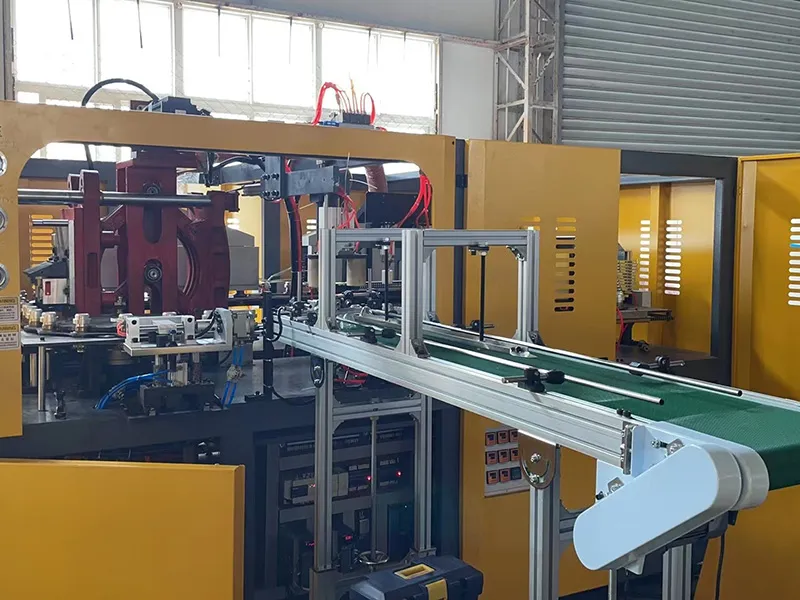

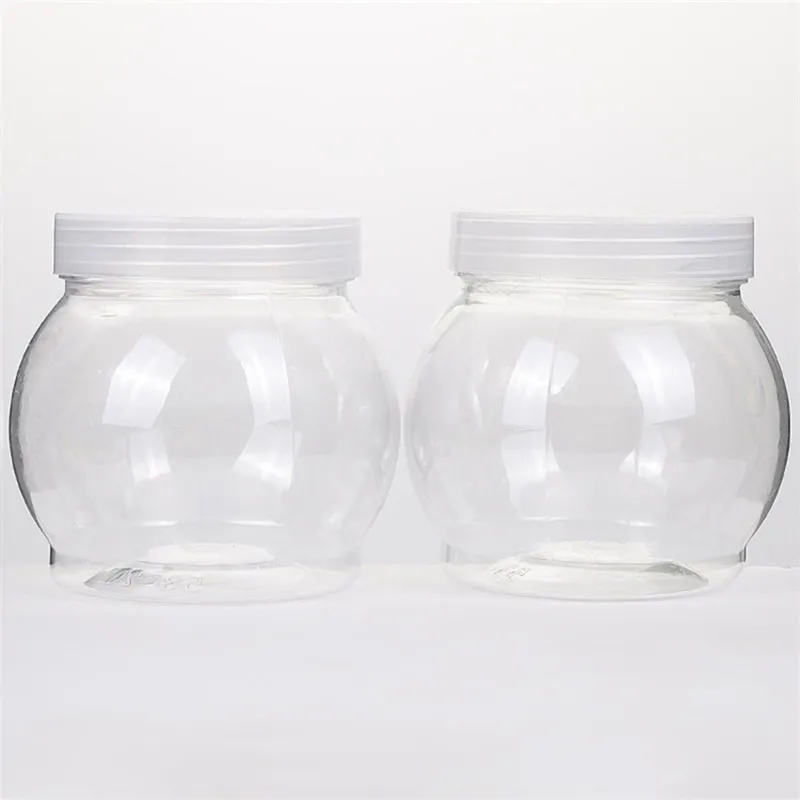

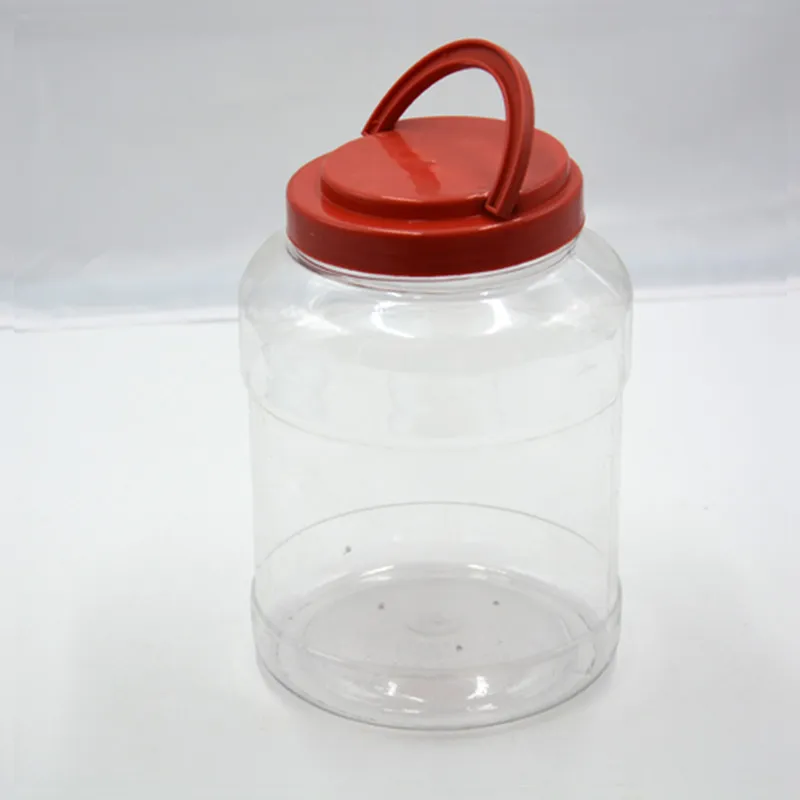

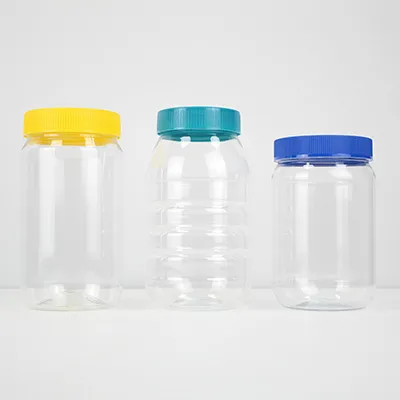

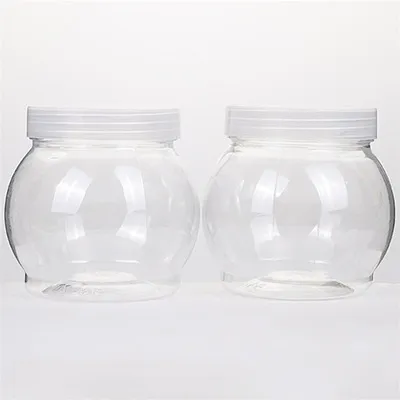

Our PET jar stretch blow moulding machine is an industrial device specifically designed for manufacturing wide-mouth containers. With our excellent processing and manufacturing capabilities, our machines can produce jars with neck diameters ranging from 60mm to 180mm and can be customized according to customers’ actual needs. These blow moulding machines are suitable for producing plastic containers such as food jars, cosmetic jars, pharmaceutical bottles, and chemical product jars with larger neck diameter.
Our PET jar stretch blow moulding machine is specifically designed for producing wide-mouth jars, with moulds and blow moulding processes suited for larger neck diameters.
Our PET jar stretch blow moulding machine offers high production capacity, capable of producing a large number of wide-mouth jars per hour to meet large-scale production demands.
Equipped with advanced control systems and precise moulds, our machines ensure consistent size and shape of each jar.

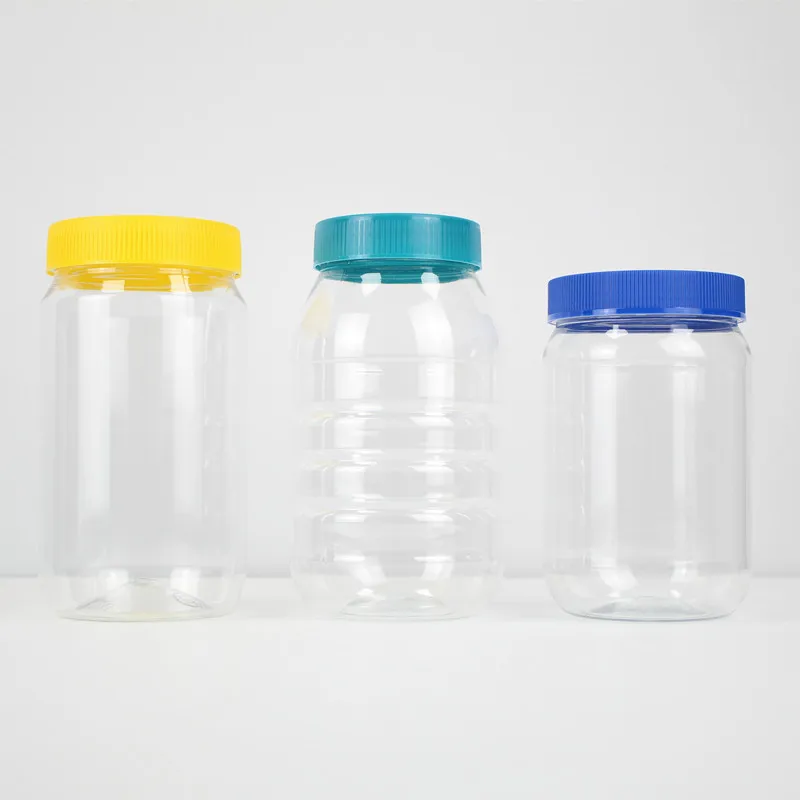

Our ability to produce wide-mouth jars of different shapes and sizes helps us cater to diverse market needs.
Utilizing advanced heating and blow moulding technology, our machines effectively reduce energy consumption and production waste, adhering to environmental standards.

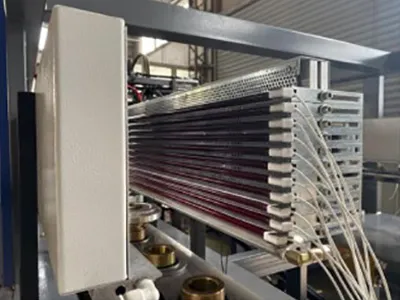

The blue light heating lamp offers higher energy efficiency, saving about 40% of energy, reducing production costs, and shortening the preform heating time. This improves the overall blow moudling process efficiency and increases output.

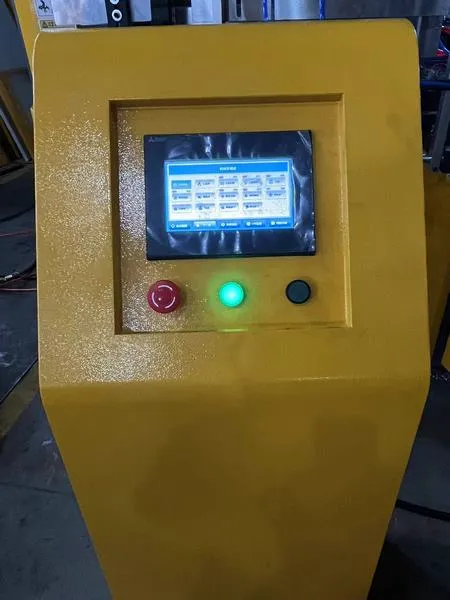

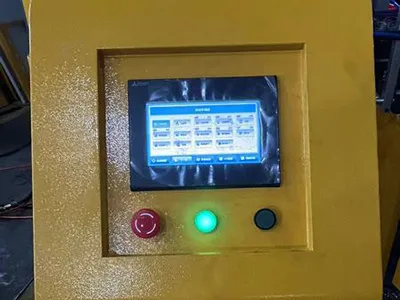

The touchscreen interface is user-friendly, allowing operators to easily monitor and control the system, reducing operational errors and training time. The Mitsubishi touchscreen is robustly designed to withstand harsh industrial environments, such as high temperatures, humidity, vibration, and dust, ensuring long-term stable operation.

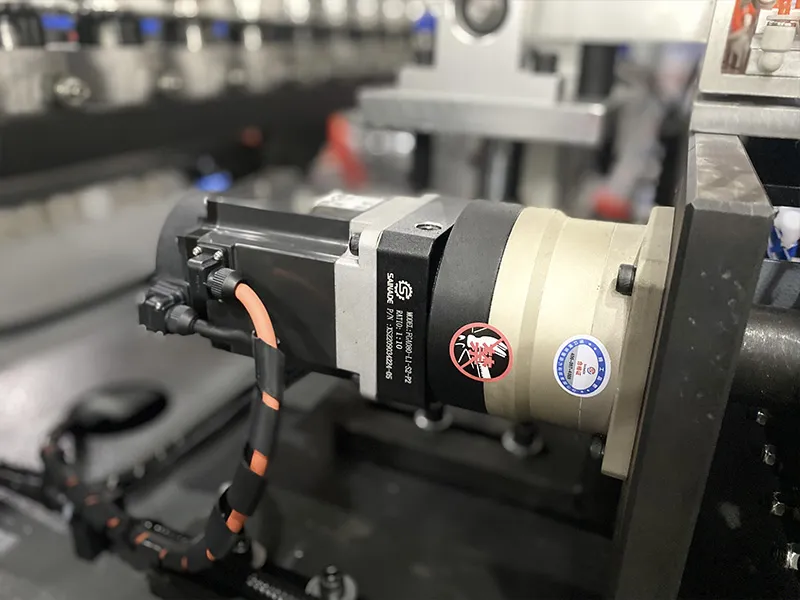

The servo motor features quick dynamic response, enabling rapid execution of control commands for efficient motion control. It also achieves high-precision position control, improving processing accuracy and efficiency by 30%, suitable for applications requiring precise positioning.
| Model | Unit | MW-J2-100 | MW-J4-100 | MW-J2-140 | |
| Clamping System | Number of cavities | 1 | 2 | 2 | |
| Clamping force | kg | 36000 | 36000 | 36000 | |
| Mould stroke | mm | 200 | 120 | 120 | |
| Stretching stroke | mm | 360 | 360 | 360 | |
| Bottom stroke | mm | 50 | 50 | 50 | |
| Cavity pitch | mm | 190.5 | 114.3 | 152.4 | |
| Number of holder | pc | 32 | 48 | 52 | |
| Container | Max. container volume | ml | 5000 | 1800 | 2000 |
| Max. container height | mm | 320 | 320 | 320 | |
| Max. container diameter | mm | 170 | 130 | 130 | |
| Max. preform height | mm | 160 | 120 | 120 | |
| Max. neck diameter | mm | 130 | 110 | 110 | |
| Theoretical Output | B/H | 800 | 1400 | 1400 | |
| Electrical System | Number of heating oven | pc | 4×4 | 4×4 | 4×4 |
| Number of lamp | pc | 4×9 | 4×8 | 4×8 | |
| Heating power | kW | 48 | 48 | 48 | |
| Installed power | kW | 50 | 50 | 50 | |
| Voltage | V | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
| Air System | Operating pressure | MPa | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Blowing pressure | MPa | 3 | 3 | 3 | |
| High pressure air consumption | L/min | 2.4/30 | 2.4/30 | 2.4/30 | |
| Power | kW | 30 | 30 | 30 | |
| Chiller System | Temperature | 10-15 | 10-15 | 10-15 | |
| Pressure | MPa | 0.4 | 0.4 | 0.4 | |
| Power | HP | 5 | 5 | 5 | |
| Machine | Machine dimensions | m | 3.3×1.8×2.2 | 3.3×1.8×2.0 | 3.9×1.8×2.0 |
| Machine weight | kg | 2500 | 3000 | 300 | |
Reach out to us to request detailed information about our molding machines to find the right fit for you!
