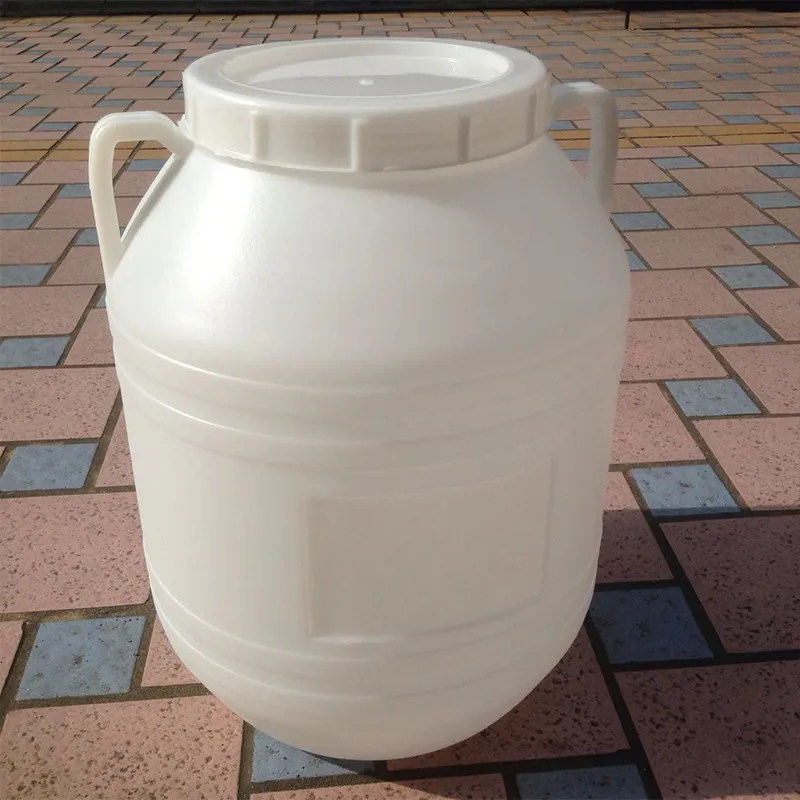

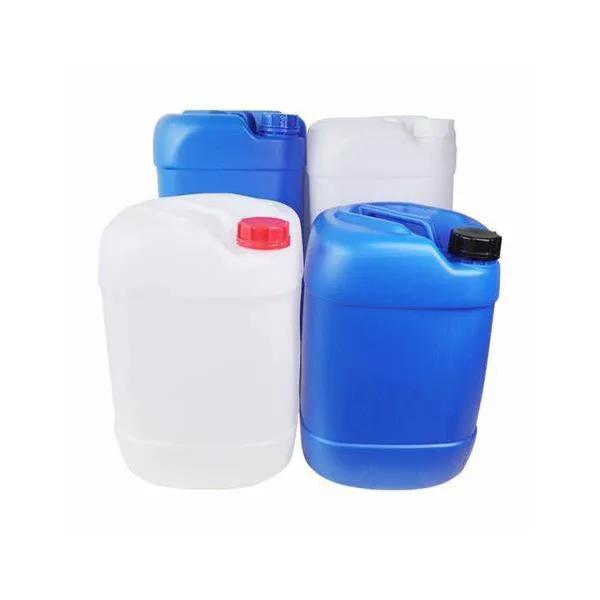

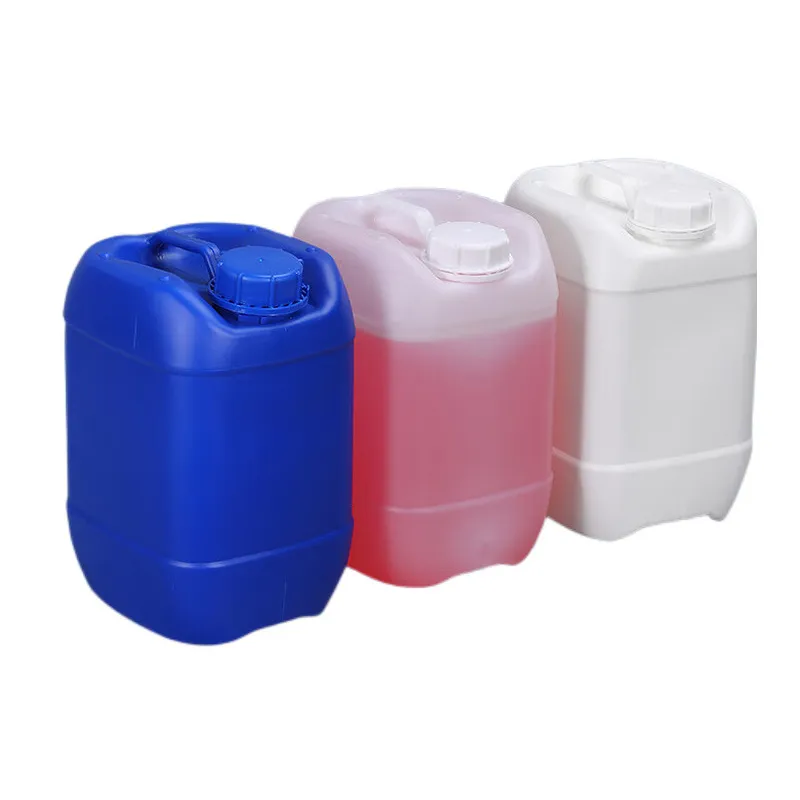

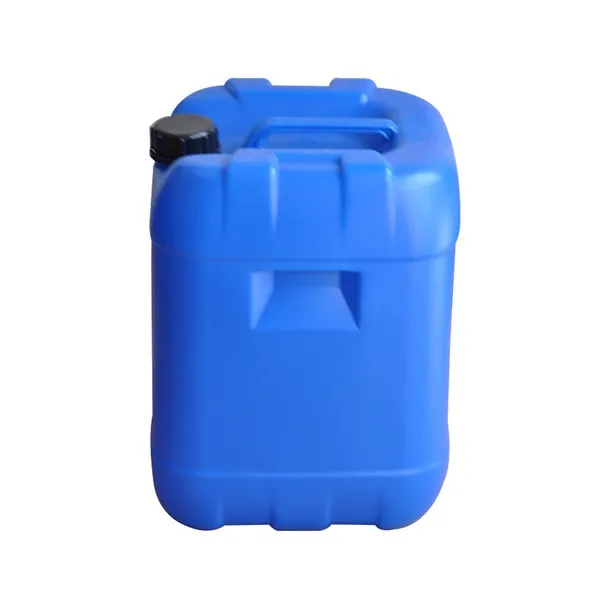

The 10-100L container extrusion blow moulding machine is primarily used for producing medium-capacity hollow plastic containers, such as 10L-100L plastic barrels, containers, and tanks. These machines are widely used in both industrial and everyday applications due to their high production efficiency and excellent product quality.
The 10-100L container extrusion blow moulding machines are suitable for producing medium batches of hollow containers, meeting the needs of small and medium-sized enterprises and specific industries. It can produce a large number of consistent quality medium-sized containers in a short time.
With customization available, we can design our machines for producing medium-sized containers of various shapes and capacities according to specific customer requirements, such as plastic barrels, water storage tanks, and chemical containers.
The machine features an energy-efficient design with optimized heating and cooling systems to reduce energy consumption and improve production efficiency. It uses high-efficiency extruder screws and heaters to ensure uniform melting and stable extrusion of plastic materials.
Also, our machines are equipped with stable servo motor-controlled hydraulic oil circuits, saving 30%-50% energy and improving product quality.
| Model | Unit | MW-S30L | MW-S60L | MW-S90L |
| Max. container volume | L | 28 | 55 | 90 |
| Dry cycle | pc/h | 600 | 450 | 360 |
| Screw diameter | mm | 80 | 90 | 100 |
| Screw L/D ratio | L/D | 24-26 | 26-28 | 26-28 |
| Screw motor power | kW | 30-37 | 37-45 | 45-55 |
| Screw heating | kW | 6.2-8.2 | 7.3-9.1 | 8.4-10.5 |
| Number of heating zone | 4 | 4 | 4-5 | |
| Extruder output of HDPE | kg/h | 100-120 | 140-180 | 180-220 |
| Oil pump drive power | kW | 22 | 30 | 37 |
| Clamping force | kN | 215 | 260 | 300 |
| Mould stroke | mm | 350-800 | 450-1000 | 500-1200 |
| Mould size (W×H) | mm | 550×650 | 700×950 | 800×1000 |
| Max. die diameter | mm | 300 | 350 | 420 |
| Die heating power | kW | 5.28 | 7.52 | 9.2 |
| Blowing pressure | MPa | 0.8 | 0.8 | 0.8 |
| Air volume | m³/min | 0.8 | 1 | 1.2 |
| Cooling water pressure | MPa | 0.3 | 0.3 | 0.3 |
| Water consumption | L/min | 60 | 85 | 100 |
| Machine weight | kg | 12000 | 14500 | 16000 |
| Machine dimensions (L×W×H) | m | 4.5×2.1×3.8 | 5.2×2.2×4 | 5.2×2.2×4.5 |
Reach out to us to request detailed information about our molding machines to find the right fit for you!
