We not only provide blow moulding machines, but also offer custom PET preform moulds for our customers. Moulds are crucial in the moulding process because they ensure high consistency and precision in the products. The accuracy of mould design and manufacturing determines the final products’ dimensional precision and shape consistency, thus moulds are essential for mass production. Also, moulds can significantly improve production efficiency. With pre-designed moulds, complex and precise parts can be produced in large quantities in a short time, reducing production cycles and costs. Moulds can increase material utilization, reducing waste and rework costs. They can be used for processing various materials, including metals, plastics, glass, and rubber, adapting to different material characteristics and needs, and are widely used across industries.
We have an experienced design team with engineers skilled in mould design, offering valuable insights and solutions during the design process. Additionally, we provide bespoke production for standard mouth PET preform moulds, wide mouth PET bottle moulds, gallon PET bottle moulds, and cap and closure moulds.

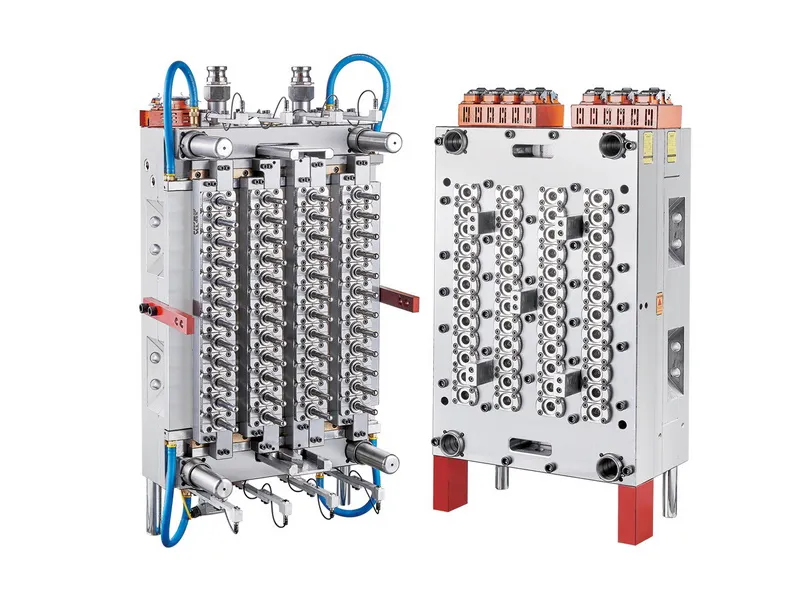

| Cavity | Preform | Mould size | Mould weight (kg) | |||
| Weight (g) | Neck diameter (mm) | Height (mm) | Width (mm) | Thickness (mm) | ||
| 2 (1×2) | 720 | 55 | 470 | 300 | 608 | 330 |
| 4 (2×2) | 720 | 55 | 490 | 480 | 730 | 440 |
| 8 (2×4) | 16 | 28 | 450 | 350 | 410 | 475 |
| 12 (2×6) | 16 | 28 | 600 | 350 | 415 | 625 |
| 16 (2×8) | 21 | 28 | 730 | 380 | 445 | 690 |
| 24 (3×8) | 28 | 28 | 770 | 460 | 457 | 1070 |
| 32 (4×8) | 36 | 28 | 810 | 590 | 515 | 1590 |
| 48 (4×12) | 36 | 28 | 1070 | 590 | 535 | 2286 |

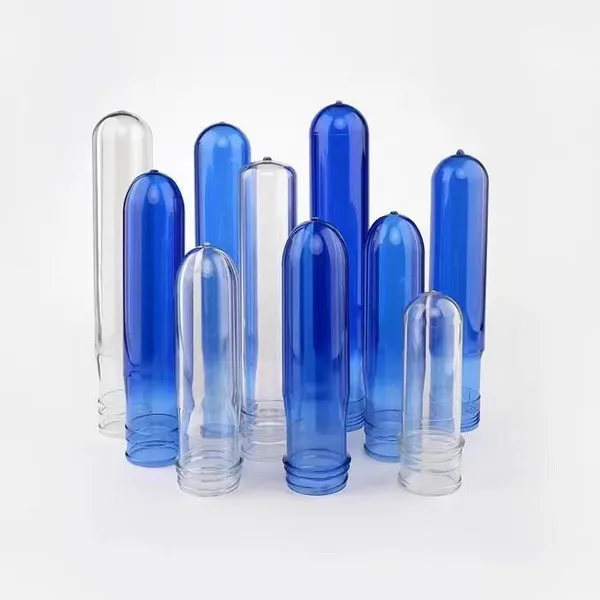

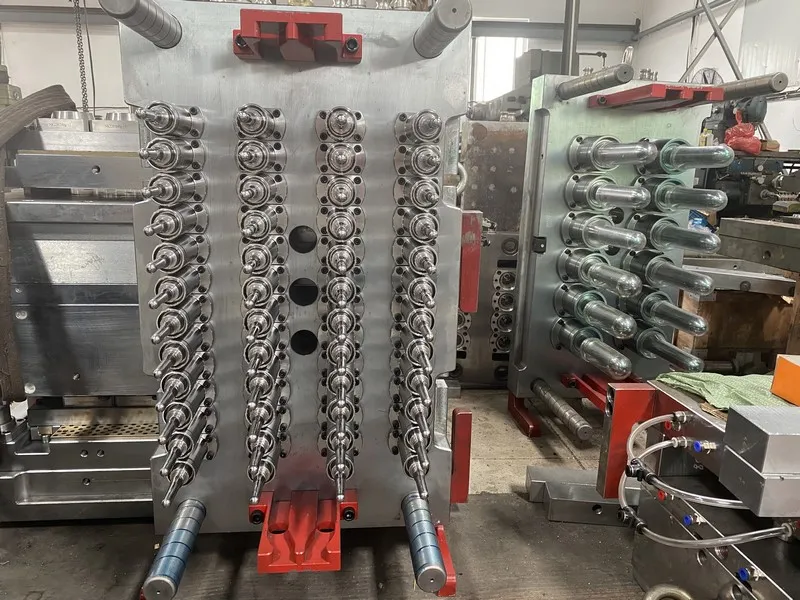

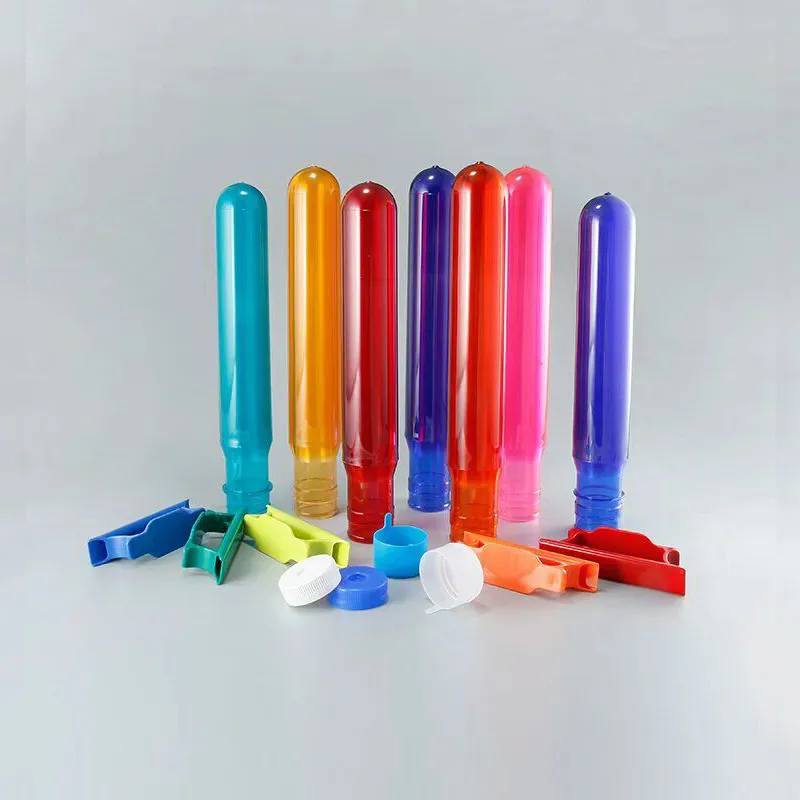

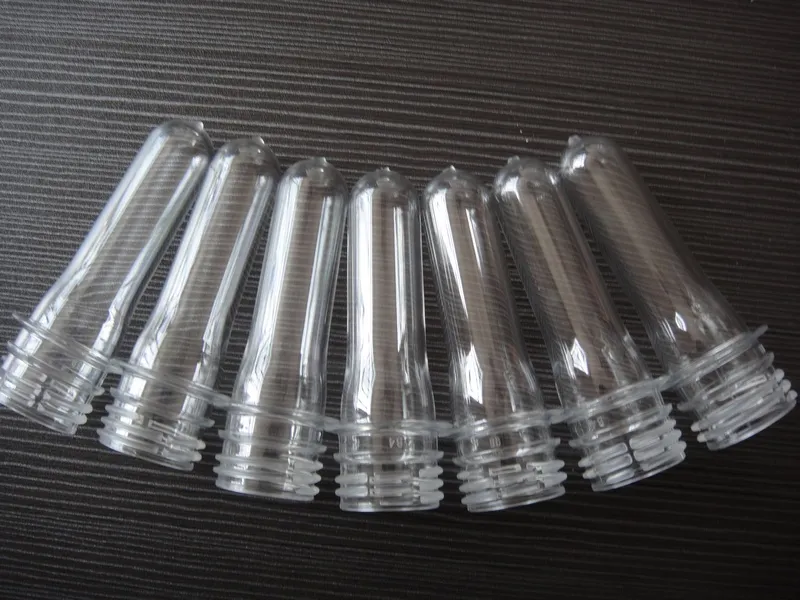

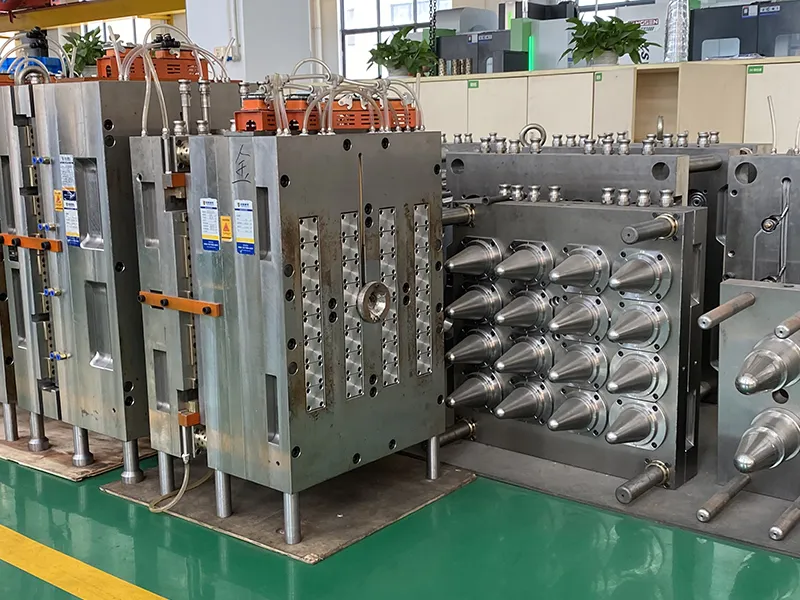

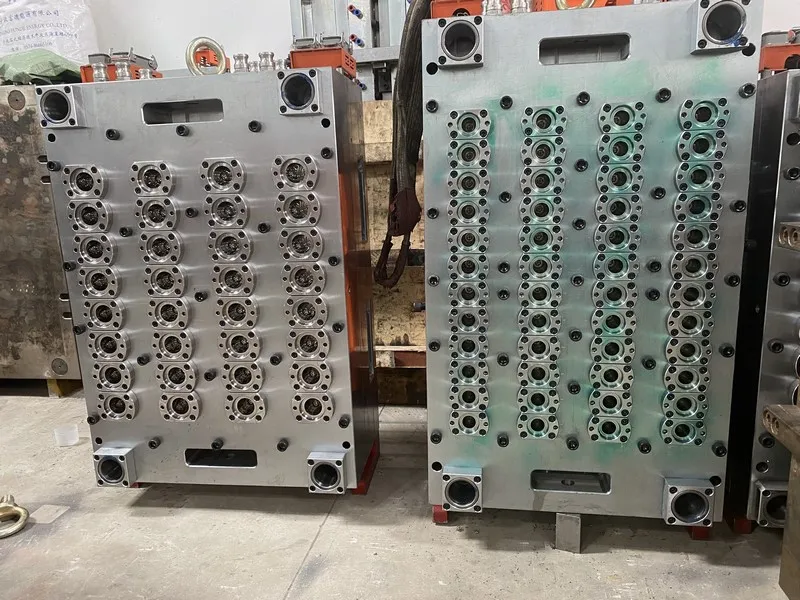

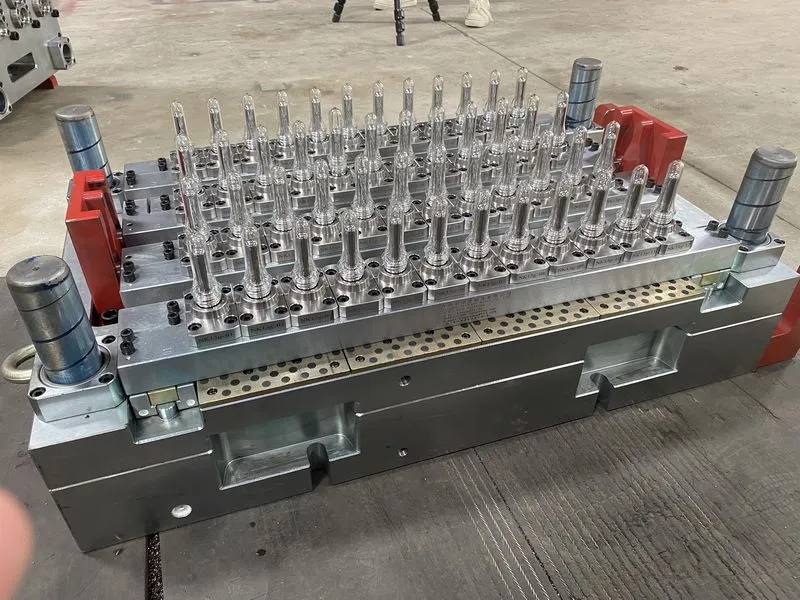

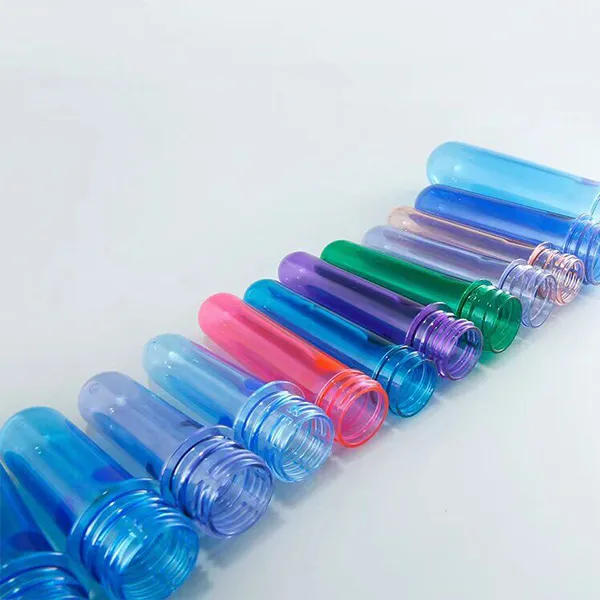

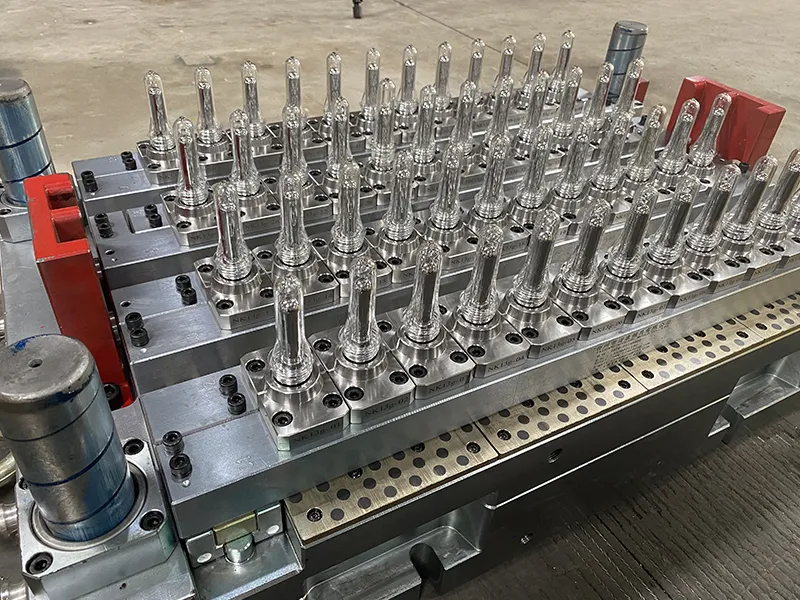

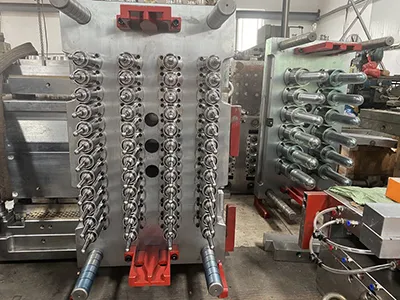

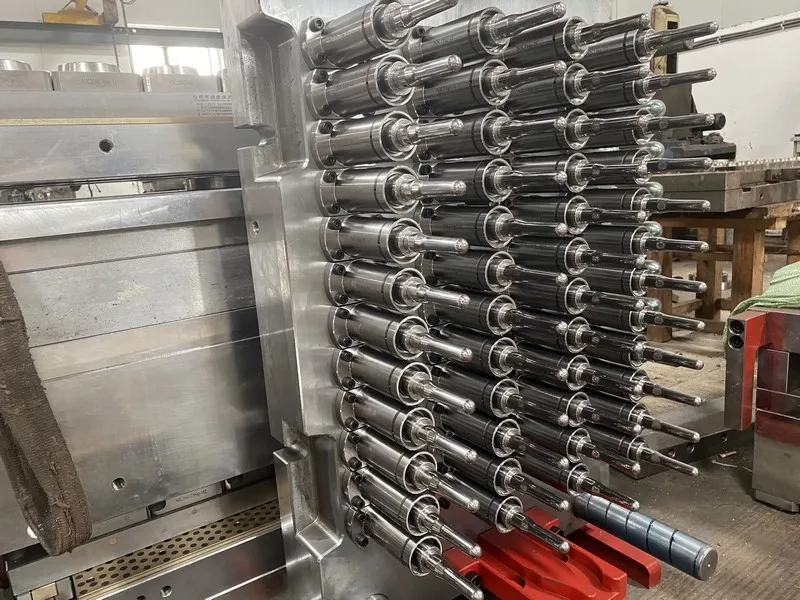

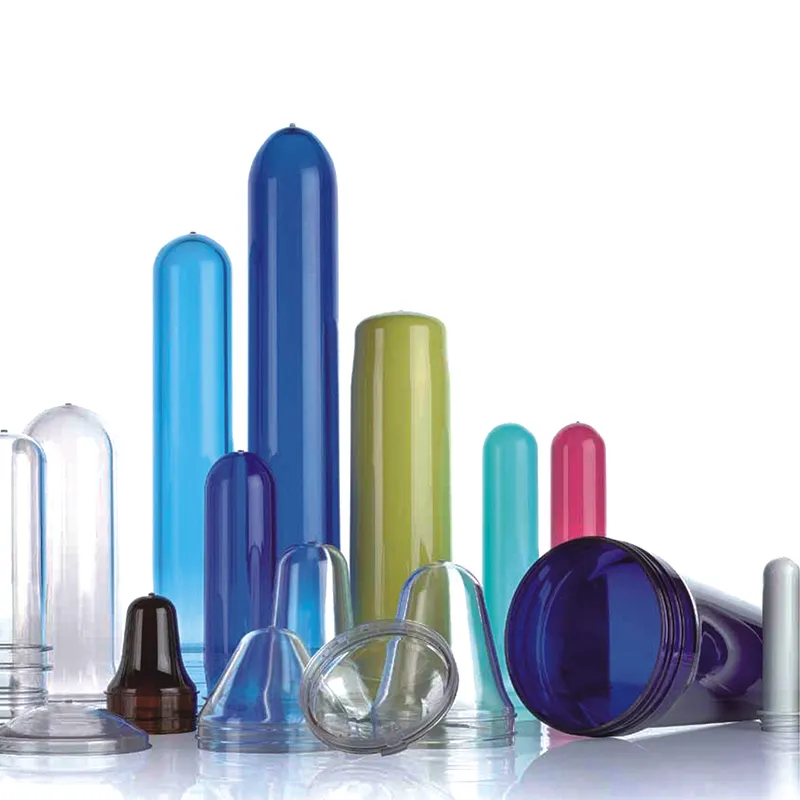

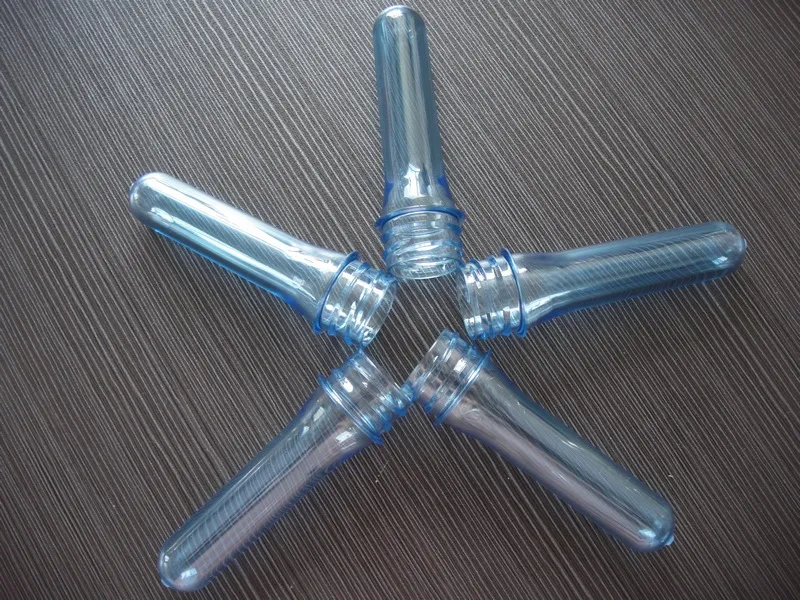

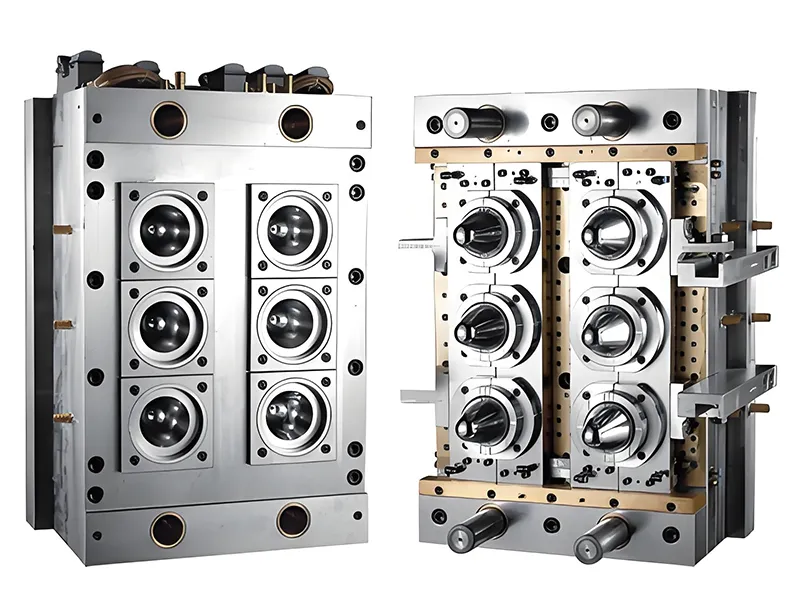

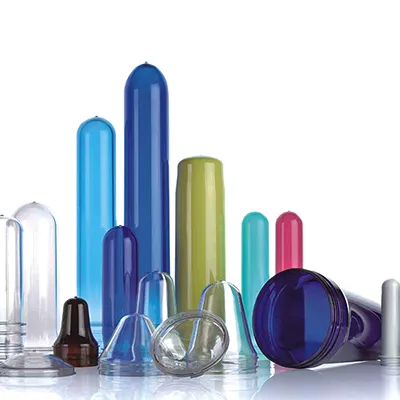

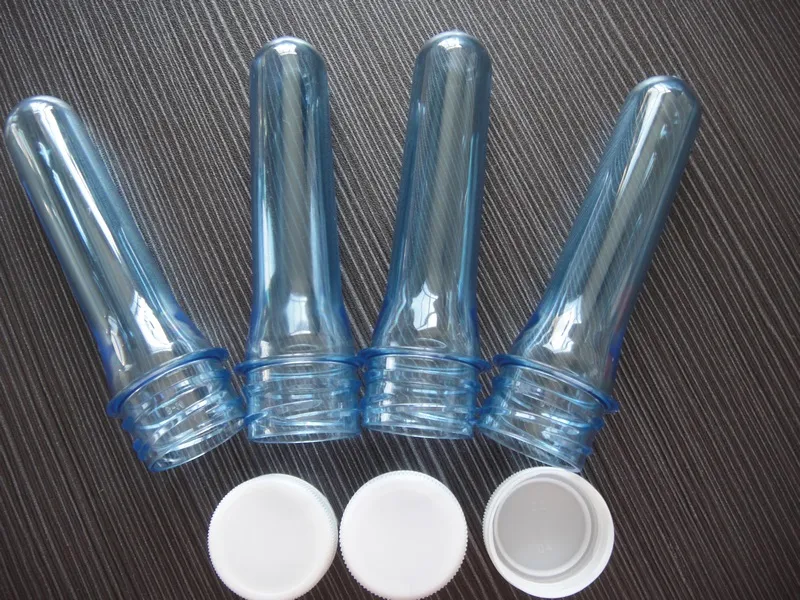

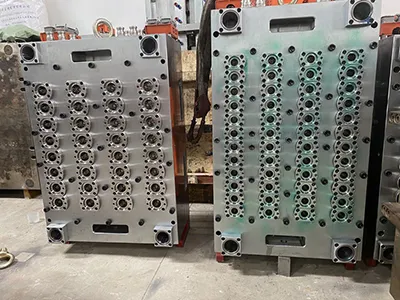

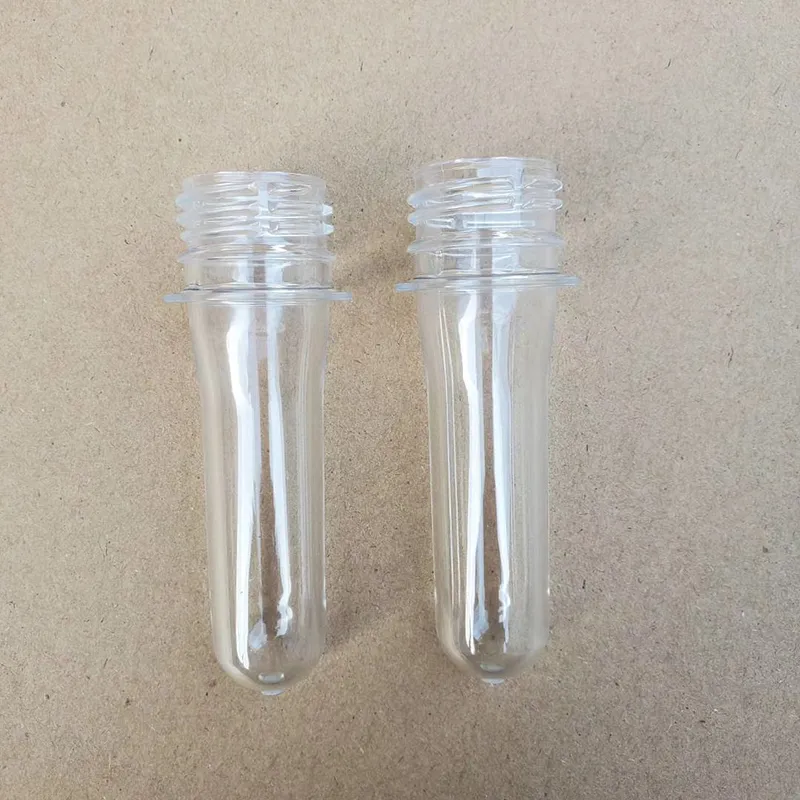

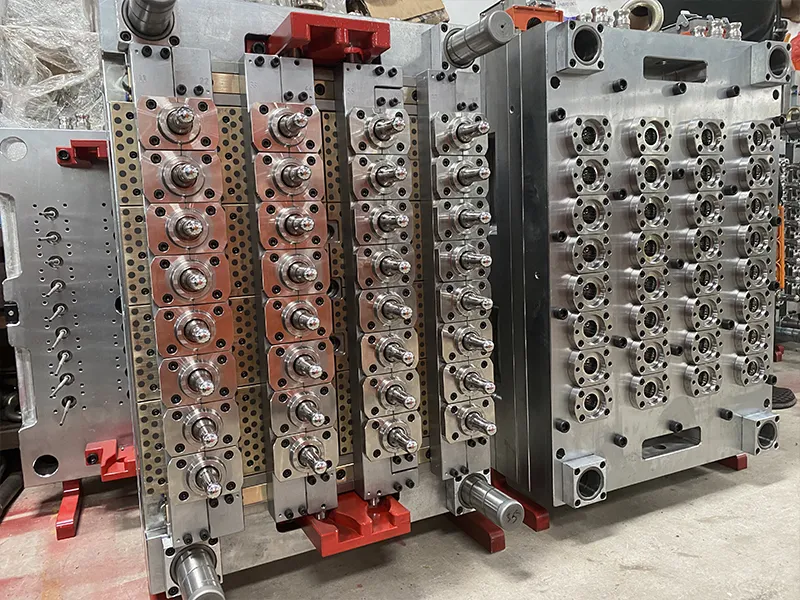

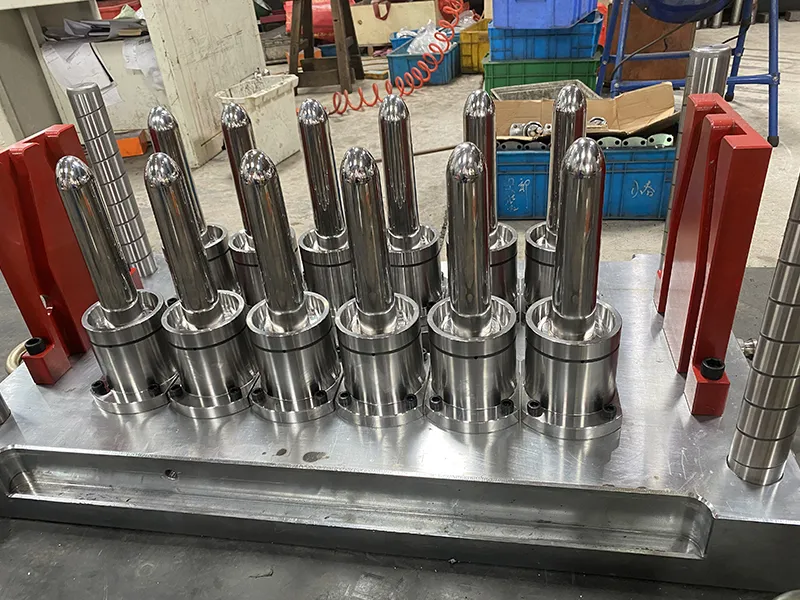

Our standard mouth preform moulds (neck diameter: 28mm, 30mm, 38mm, 45mm) are used to produce preforms of standard sizes and shapes, which can be further processed into final bottles through blow moulding. Standard mouth bottles are widely used in the beverage, cosmetics, pharmaceutical, and chemical industries.

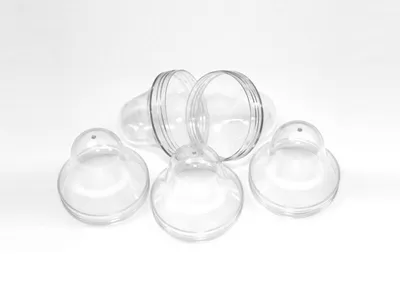

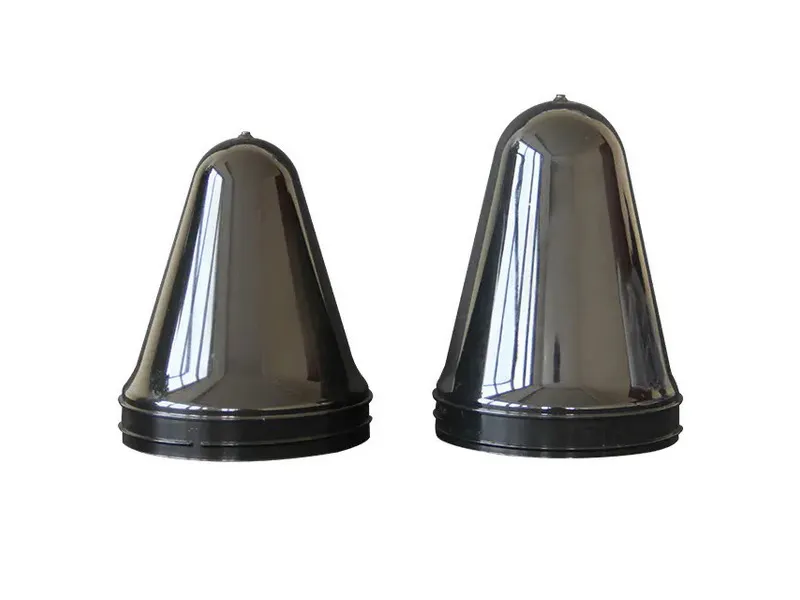

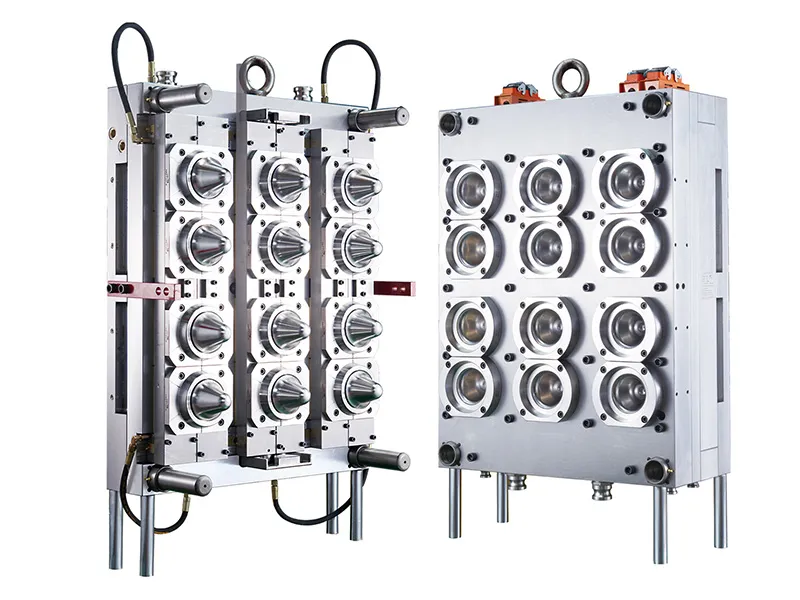

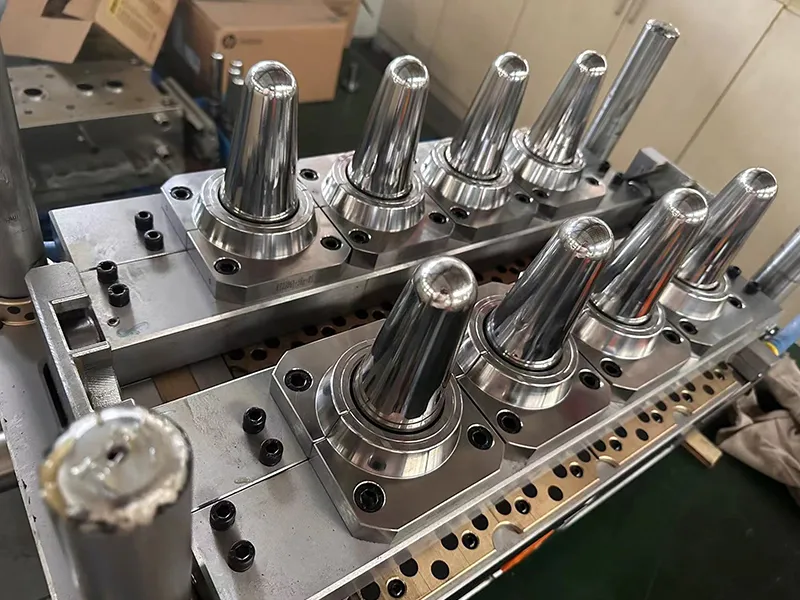

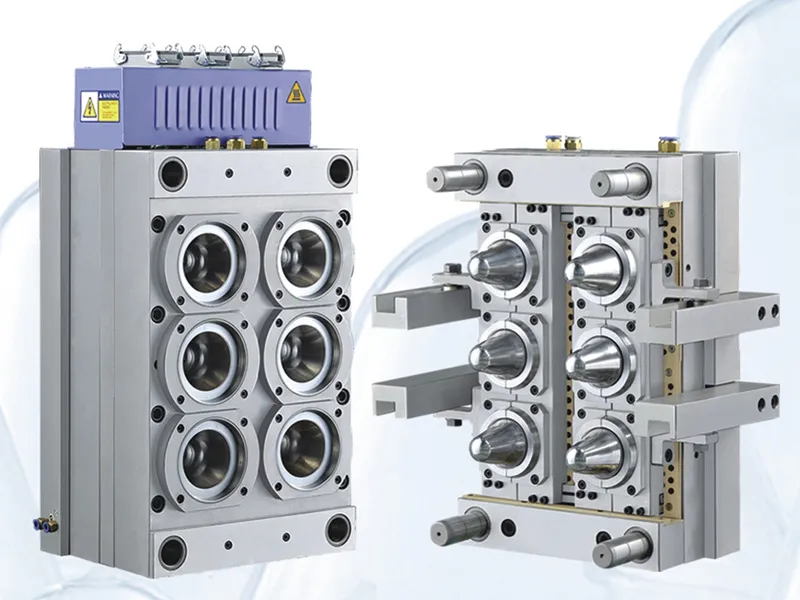

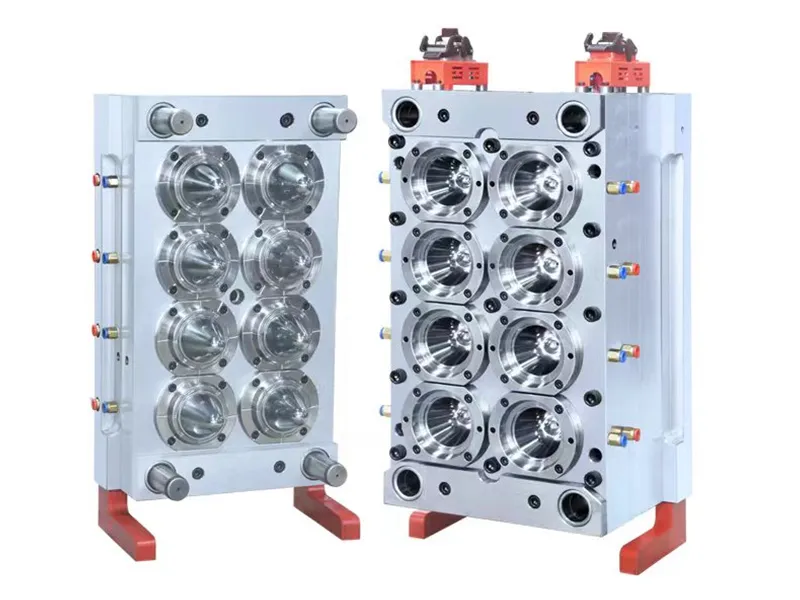

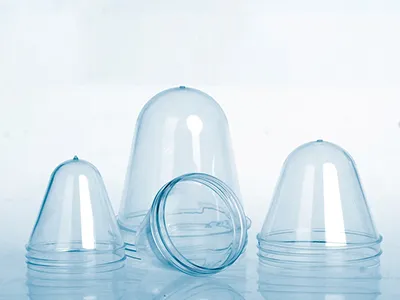

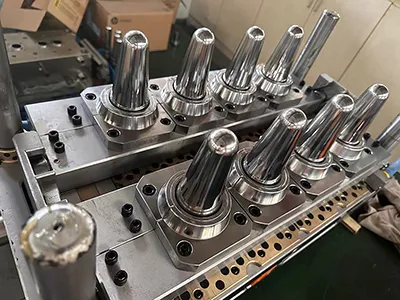

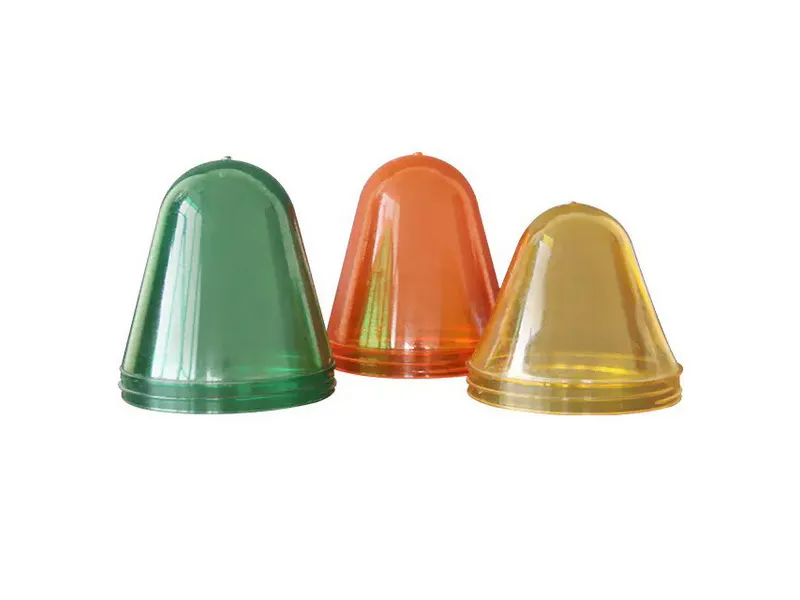

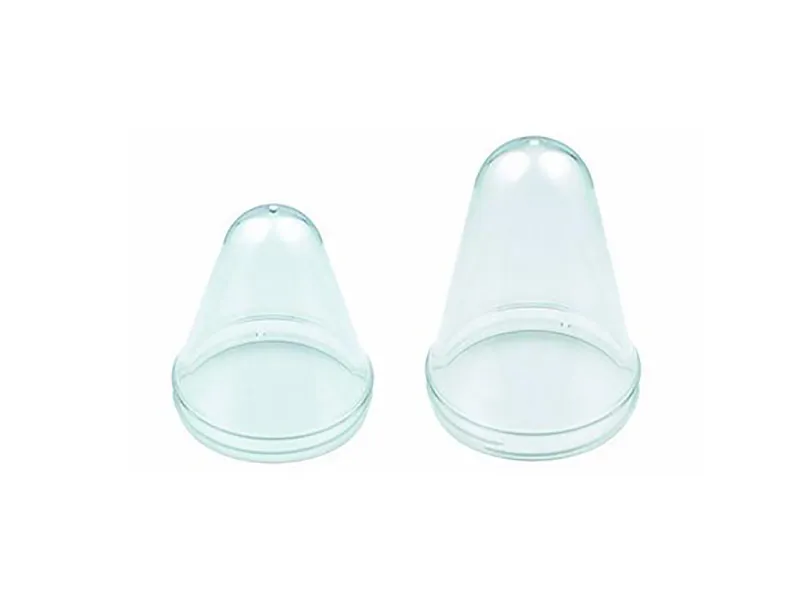

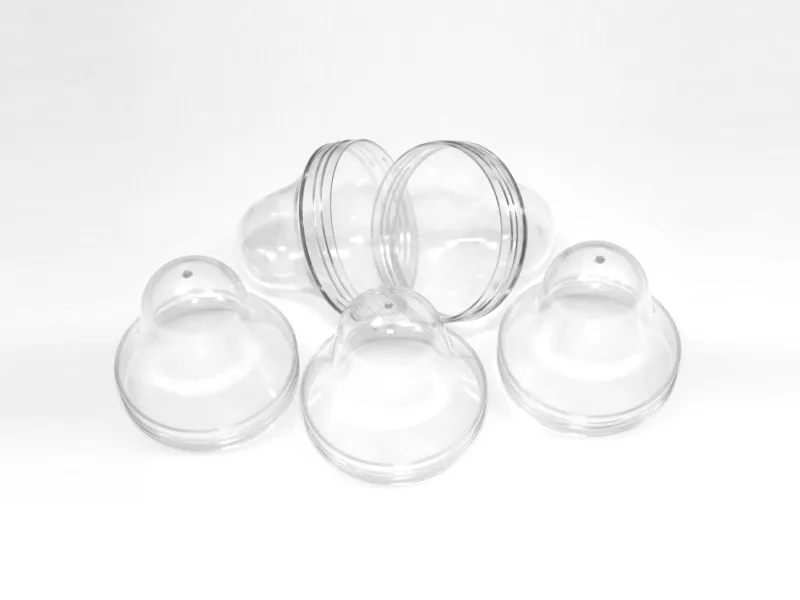

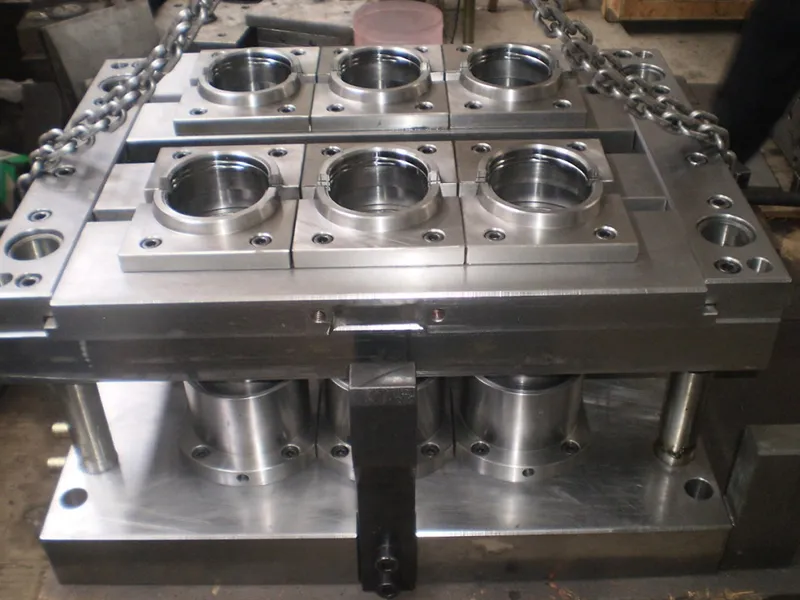

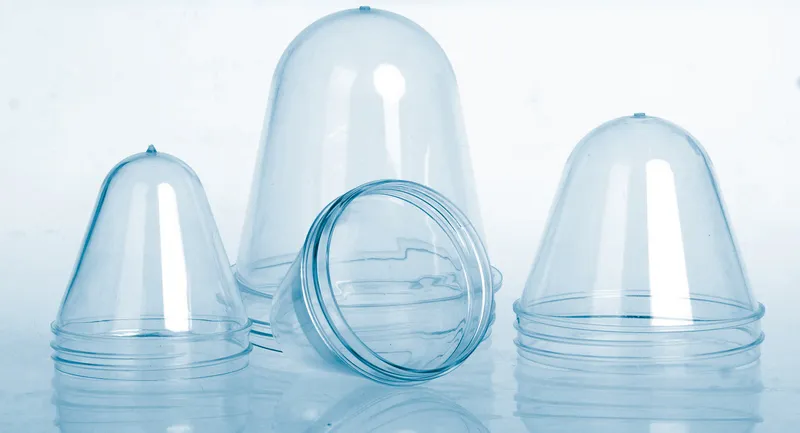

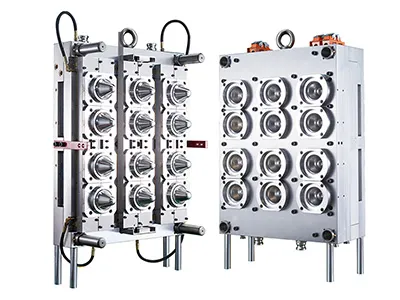

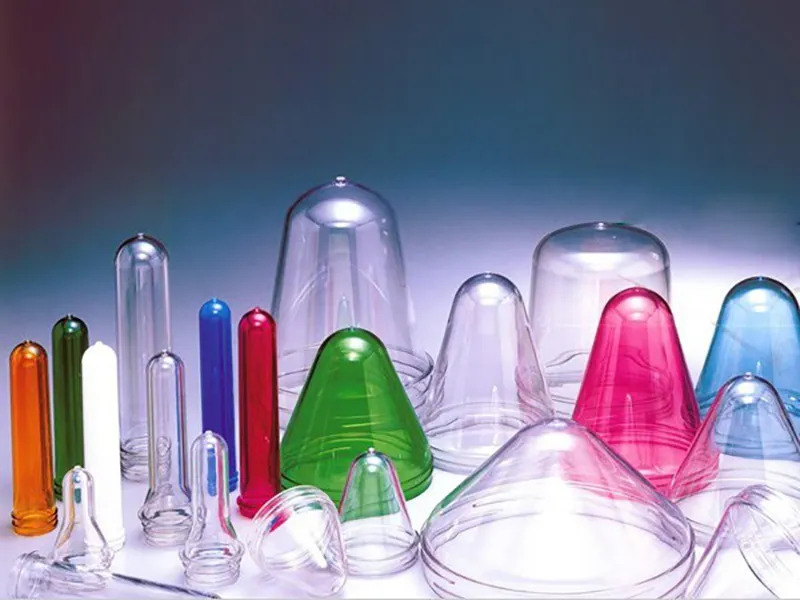

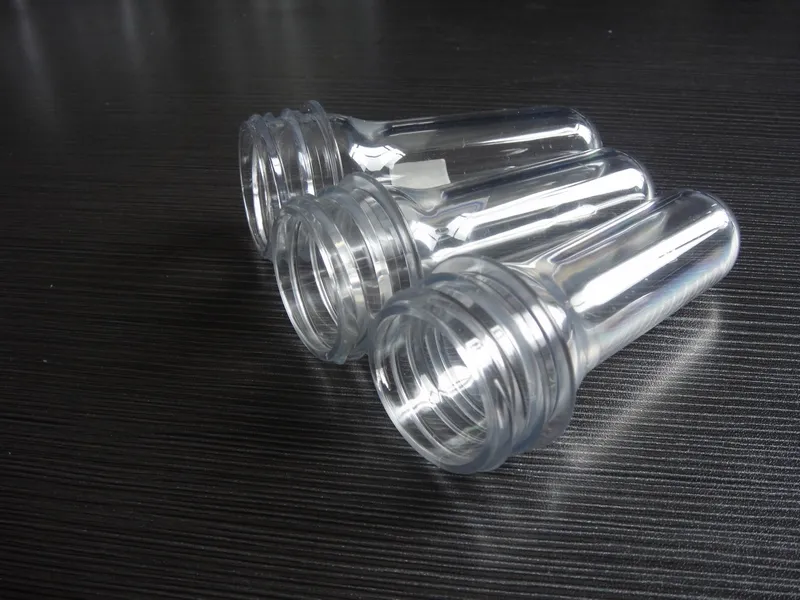

Wide mouth preform moulds (neck diameter: 70mm, 85mm, 88mm, 102mm) are used to produce preforms for wide mouth jars. Wide mouth jars are commonly used for packaging food, cosmetics, and pharmaceutical products. Preforms are the initial shape of the bottles, made through injection moulding and then processed into final bottles through blow moulding.

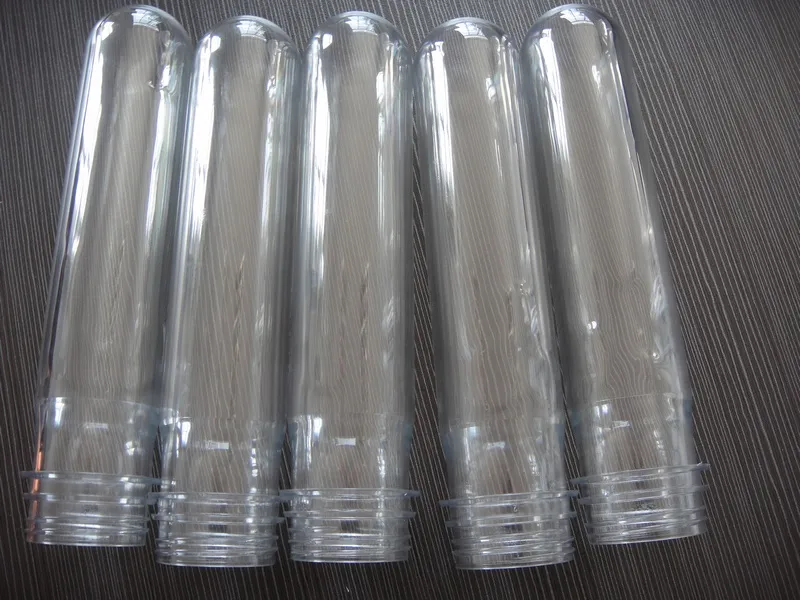

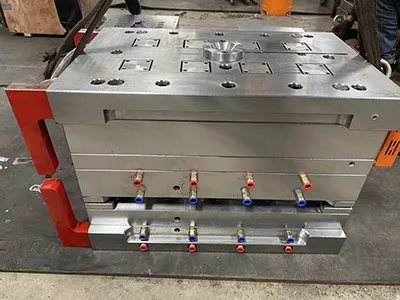

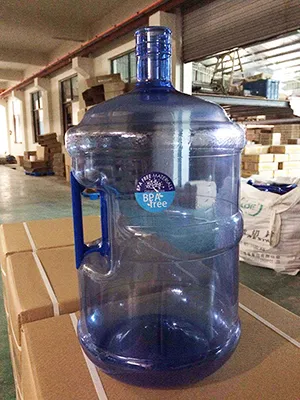

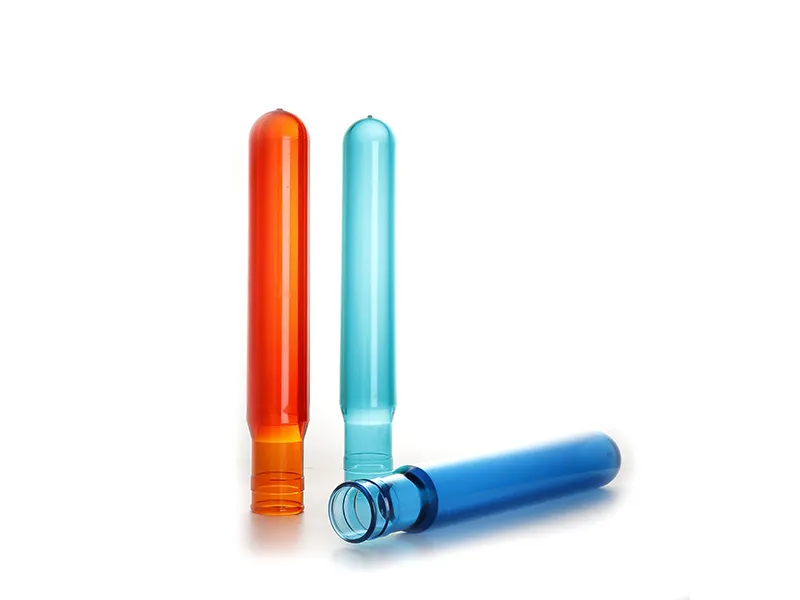

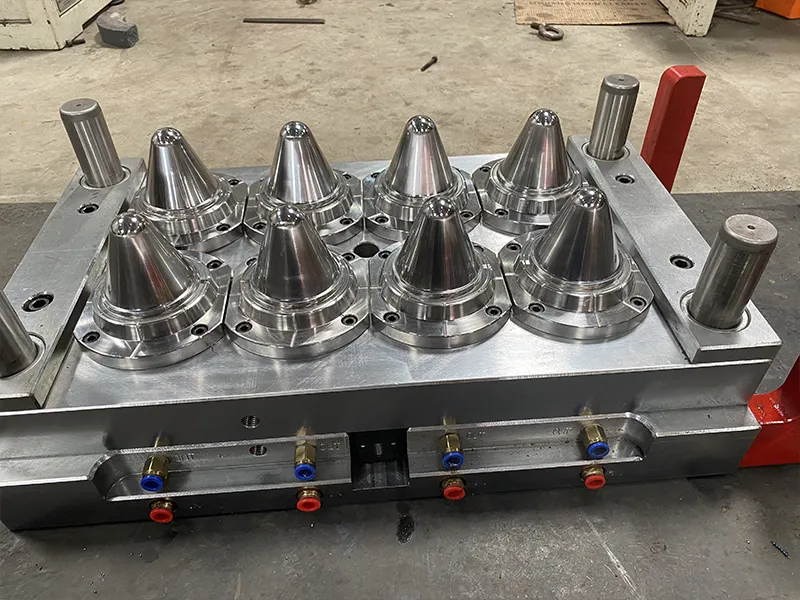

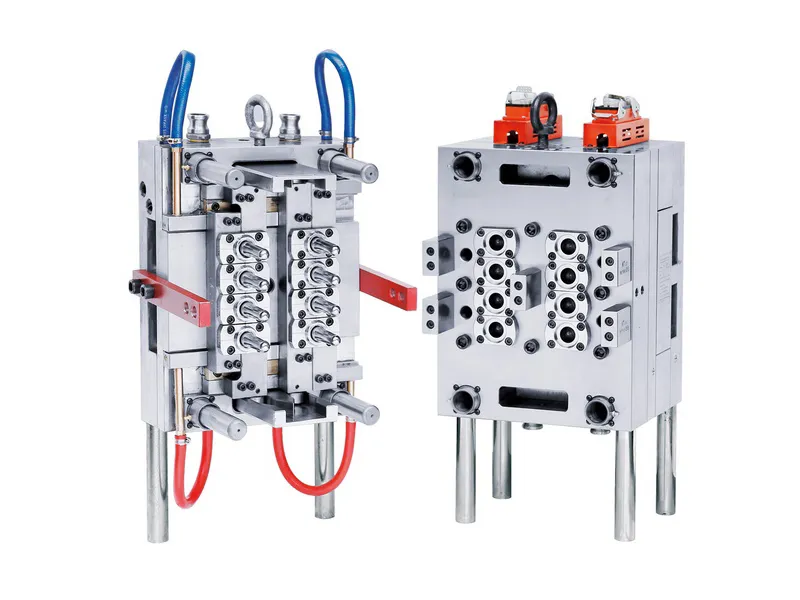

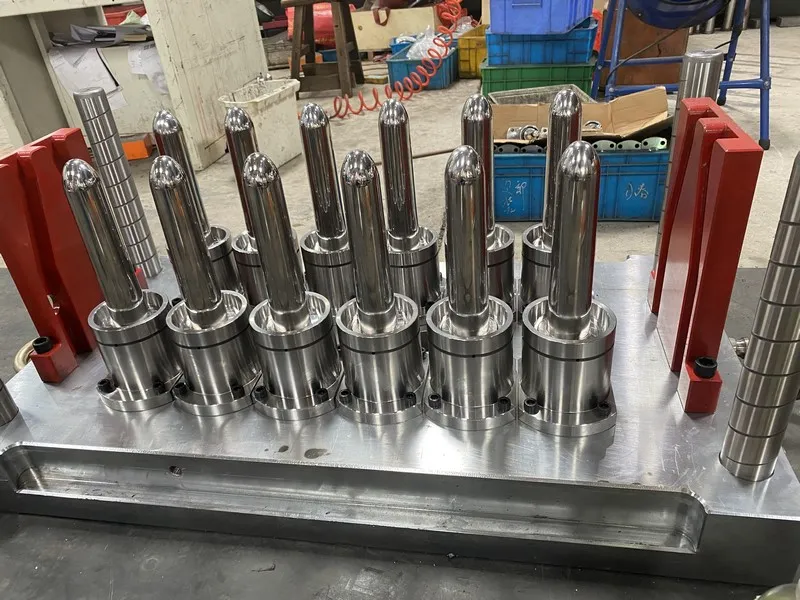

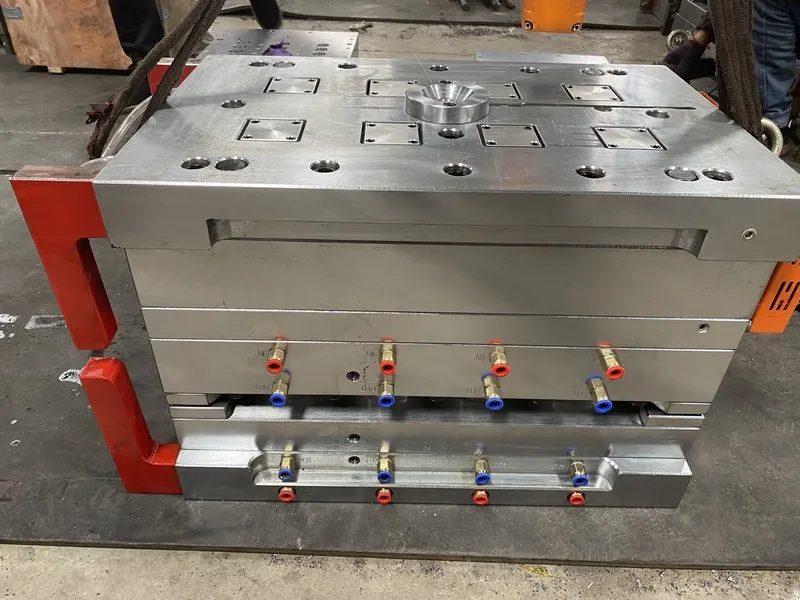

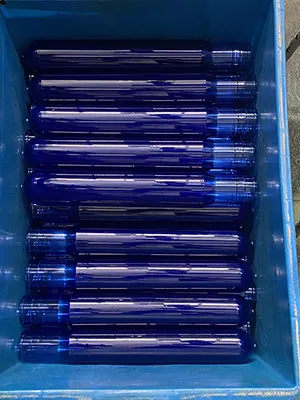

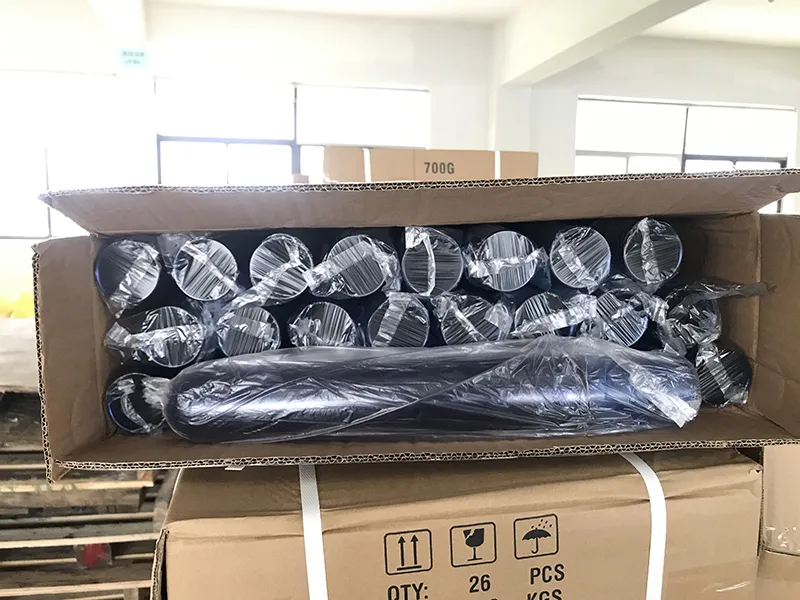

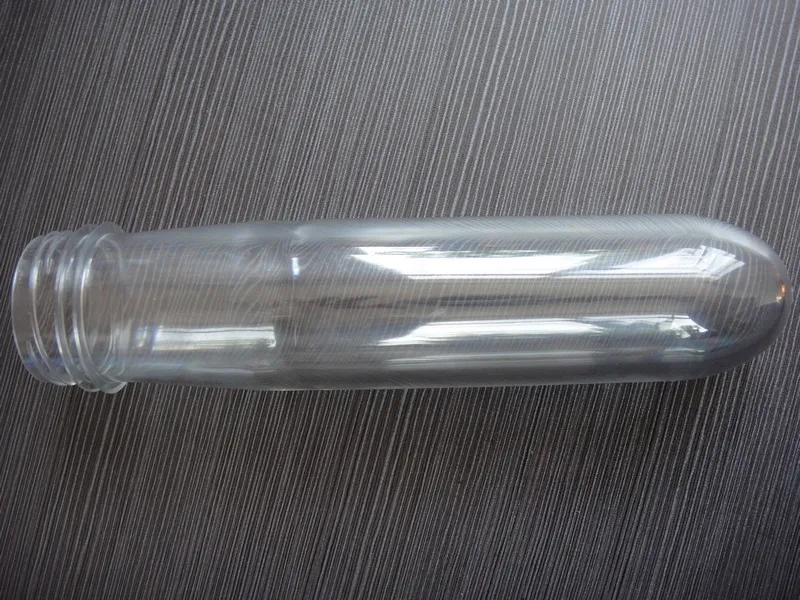

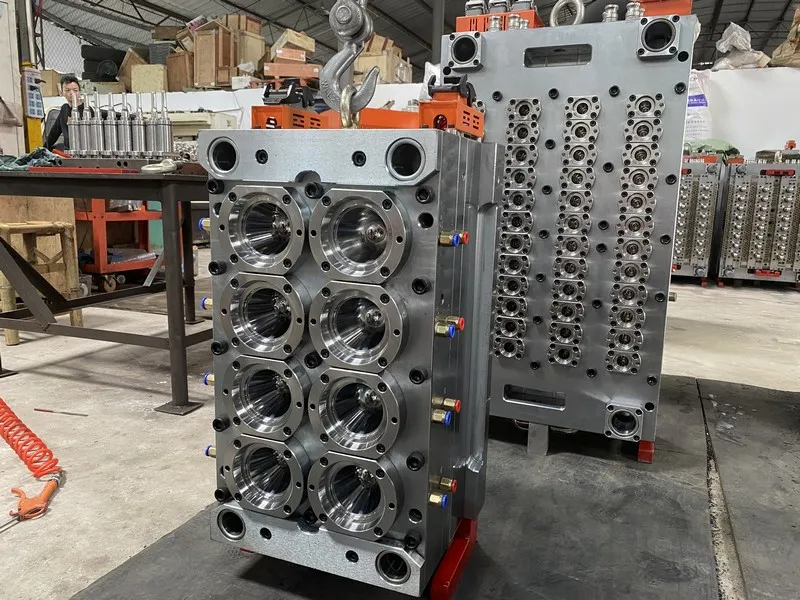

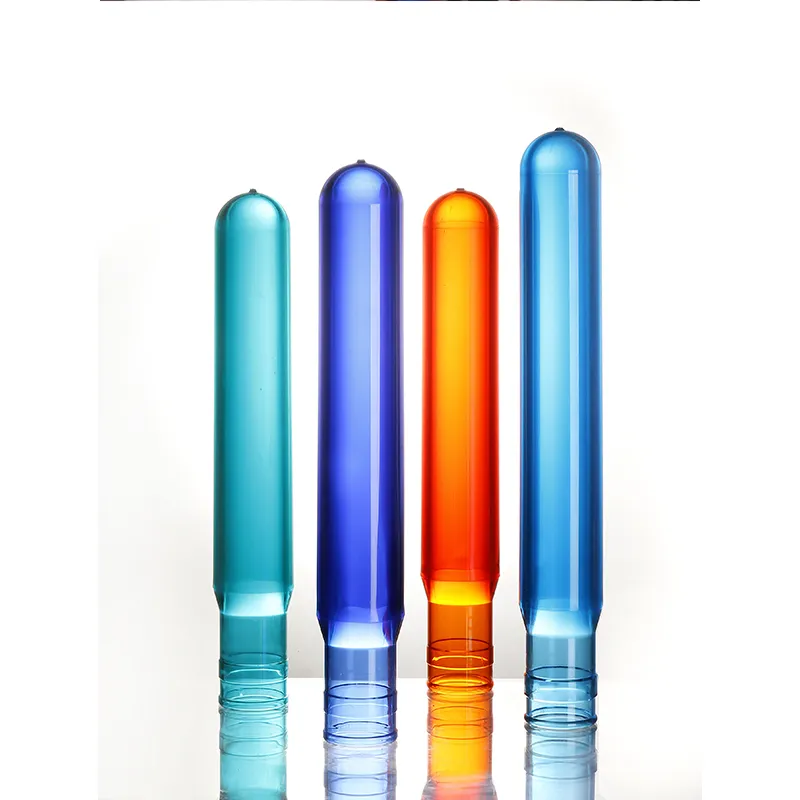

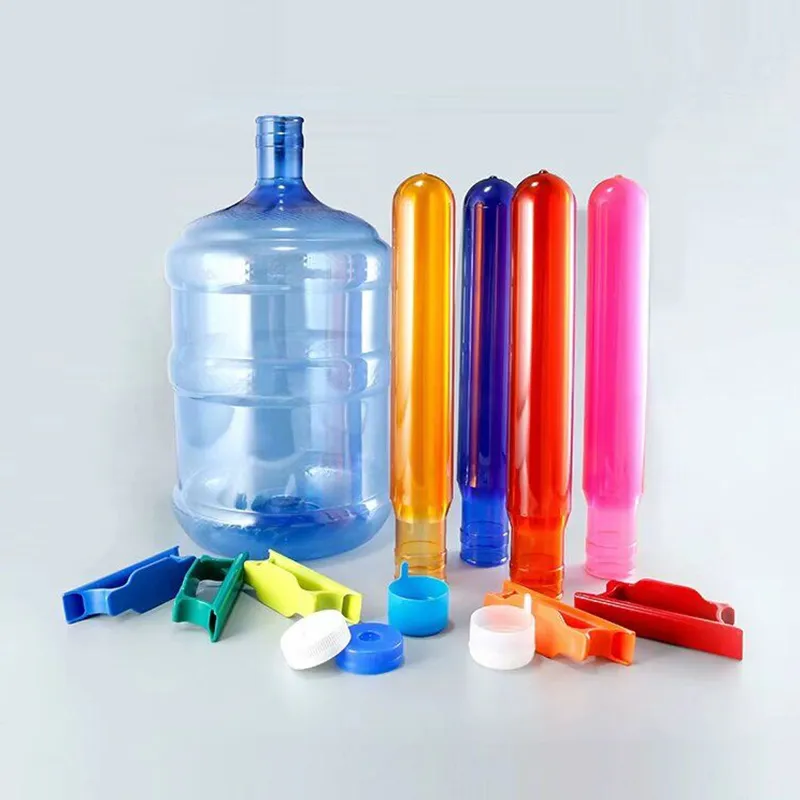

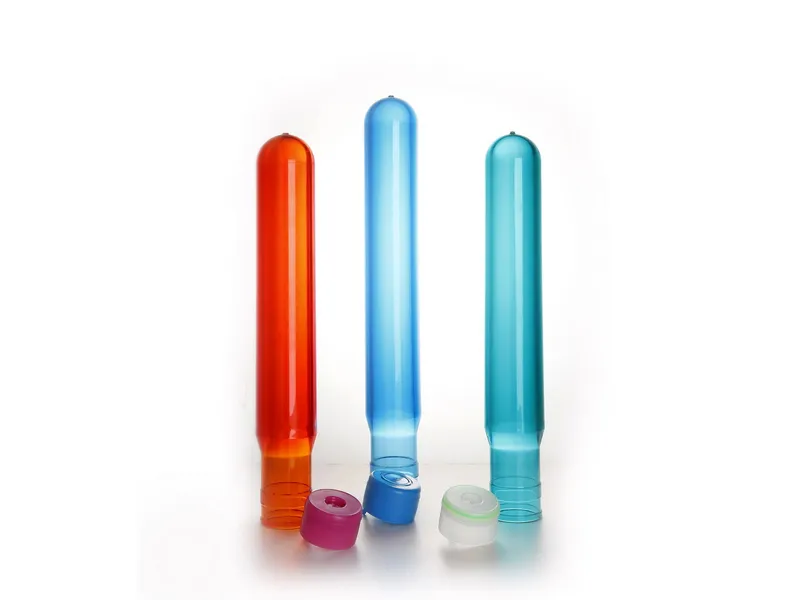

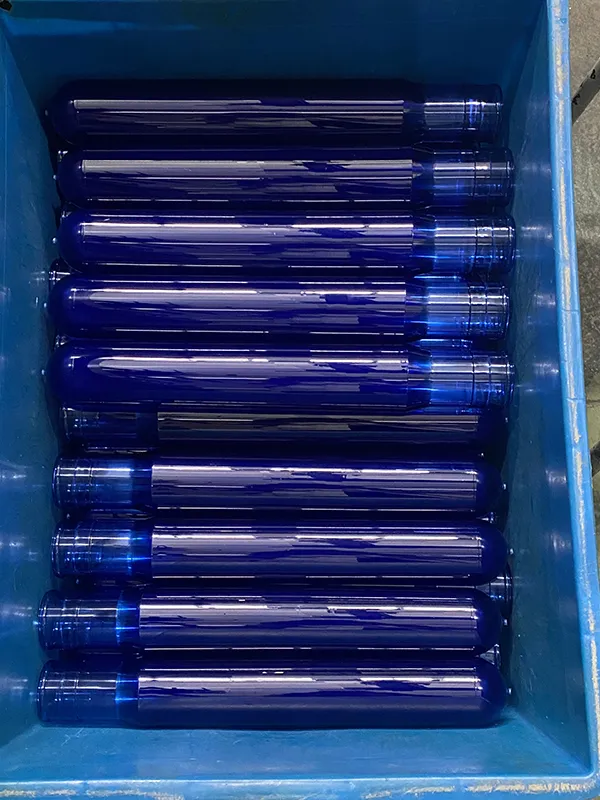

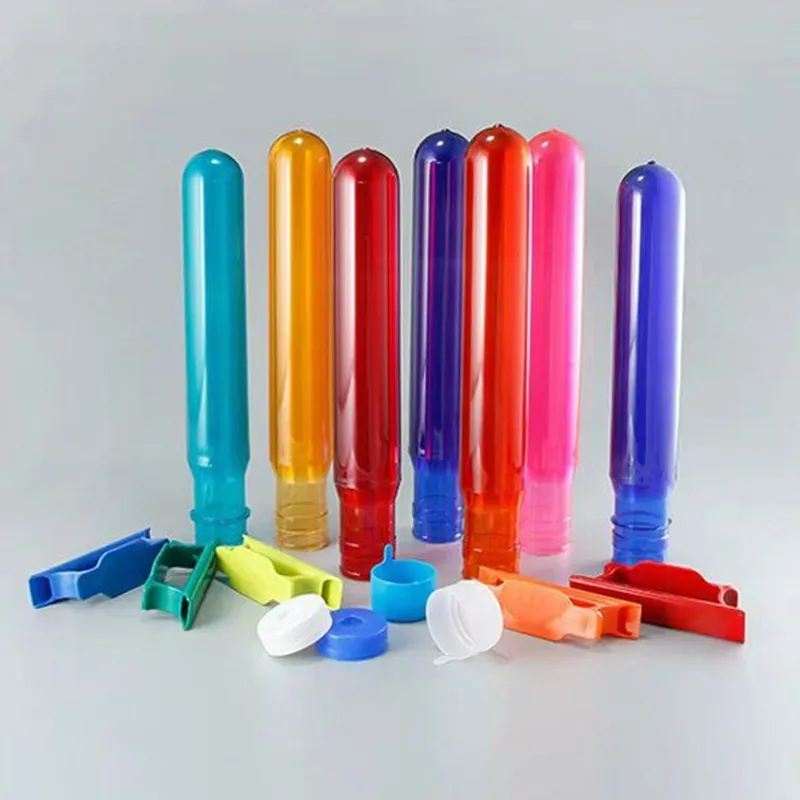

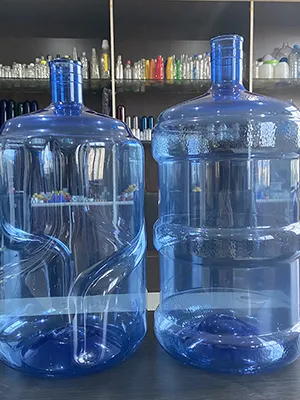

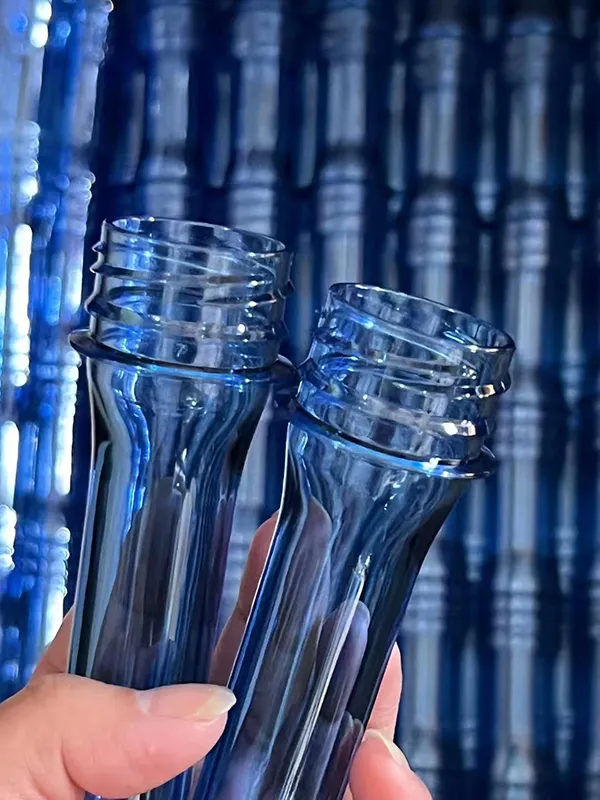

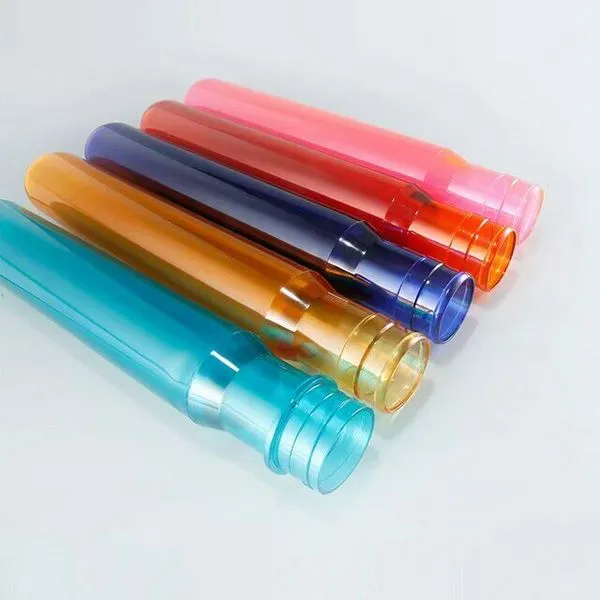

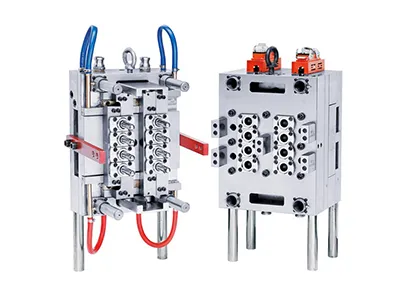

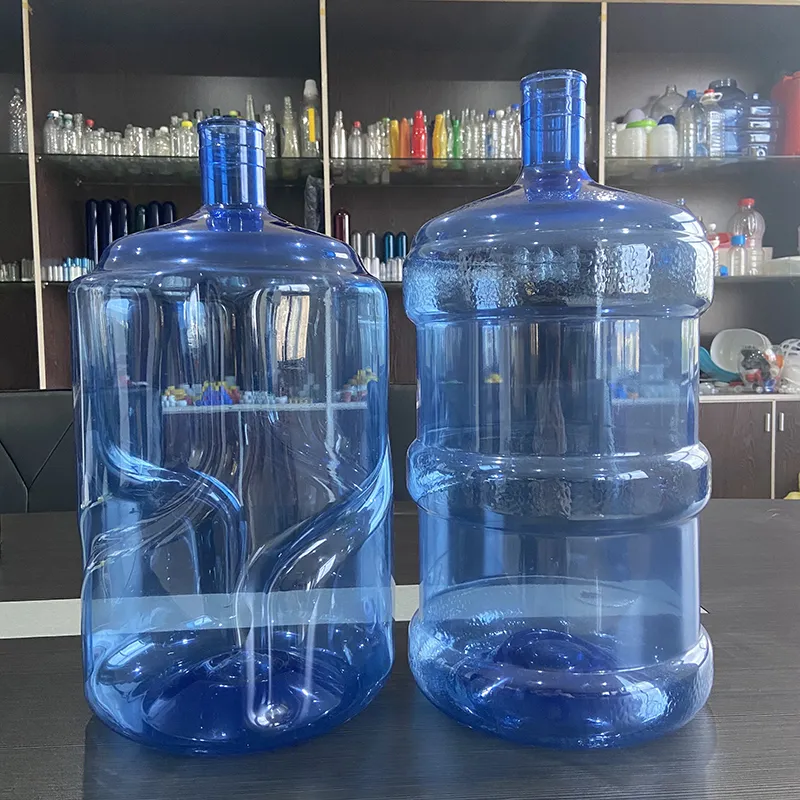

PET preform moulds for gallon bottles are specifically designed to produce preforms for gallon bottles. Gallon bottles are widely used for packaging water, oil, chemicals, and other liquids. Preforms are the initial shape of the bottles, made through injection moulding and then processed into final bottles through blow moulding.

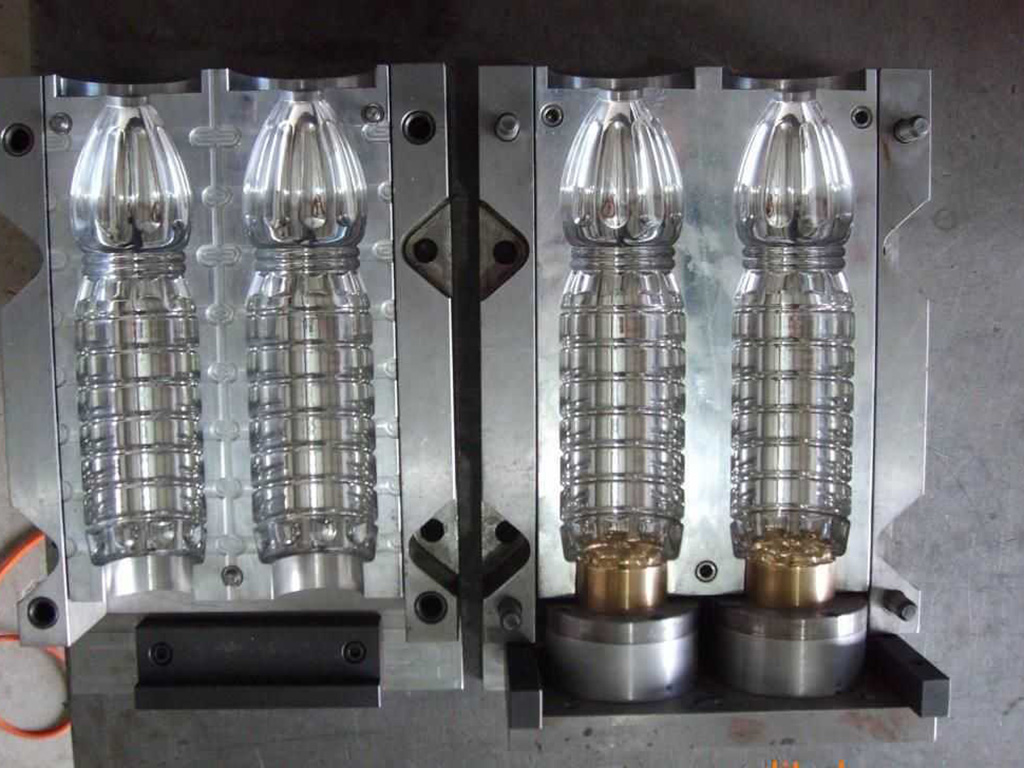

Our blow moulds for bottles are made from high-quality alloy steel, stainless steel, and aerospace-grade aluminum. Utilizing advanced CNC machining and precision coordinate measuring instruments, we ensure tight dimensional accuracy and consistent bottle production.

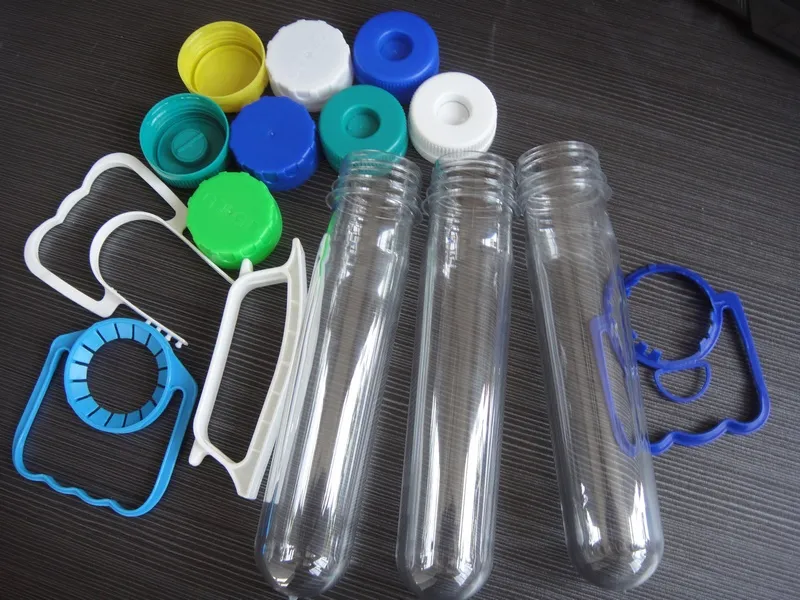

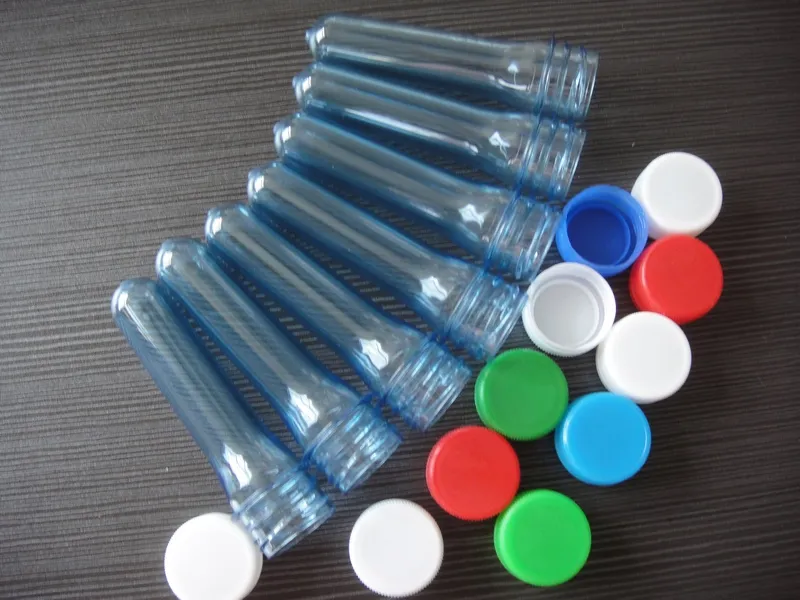

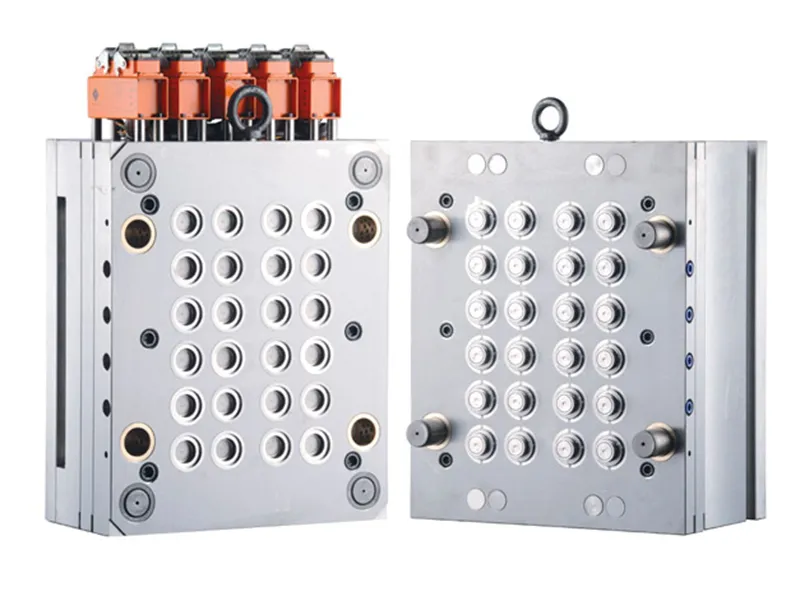

We can custom-produce various sizes of cap and closure moulds for manufacturing various bottle caps and container lids, widely used in the food and beverage, cosmetics, and pharmaceutical industries. The design and manufacturing quality of our cap and closure moulds ensure high performance, strong sealing, and attractive appearance of the final products.
Reach out to us to request detailed information about our molding machines to find the right fit for you!

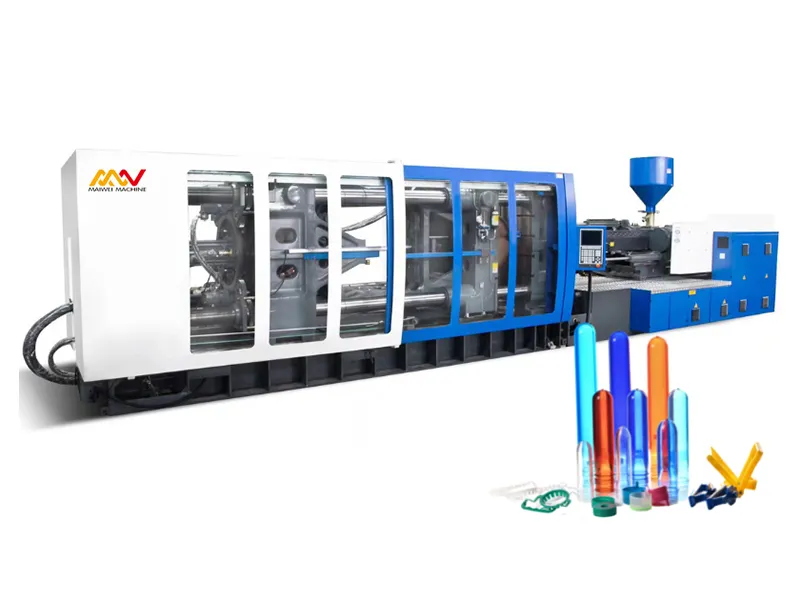

Our PET preform injection moulding machines, also known as a bottle preform injection moulding machines, are specifically designed for manufacturing plastic preforms used to produce PET bottles, such as beverage bottles, mineral water bottles, and cosmetic bottles.
