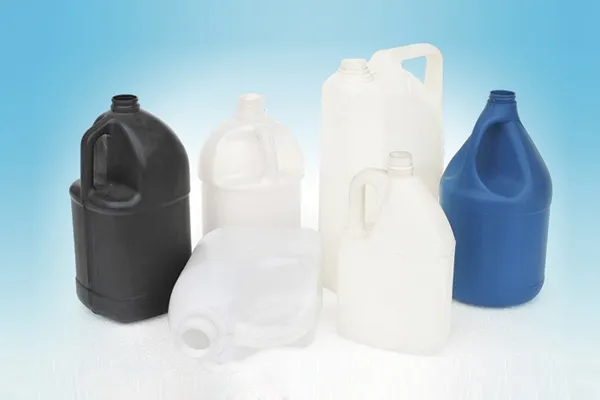

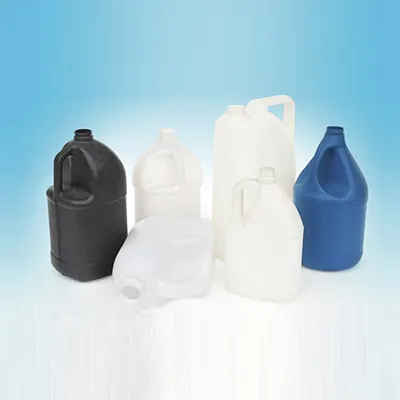

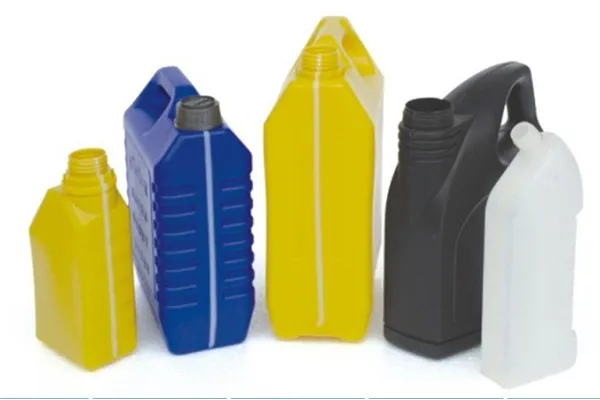

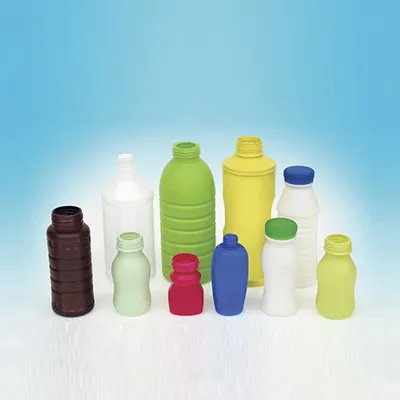

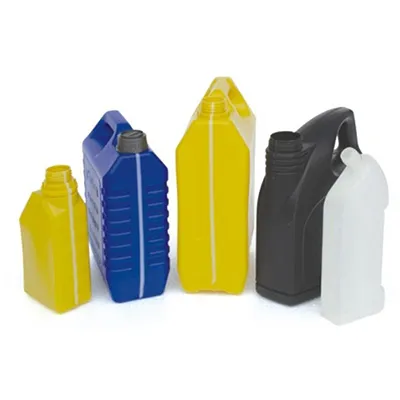

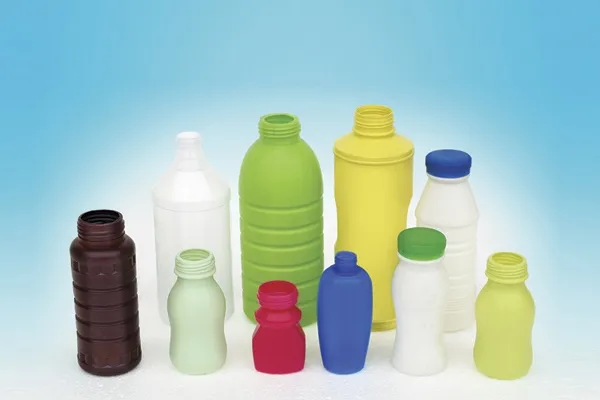

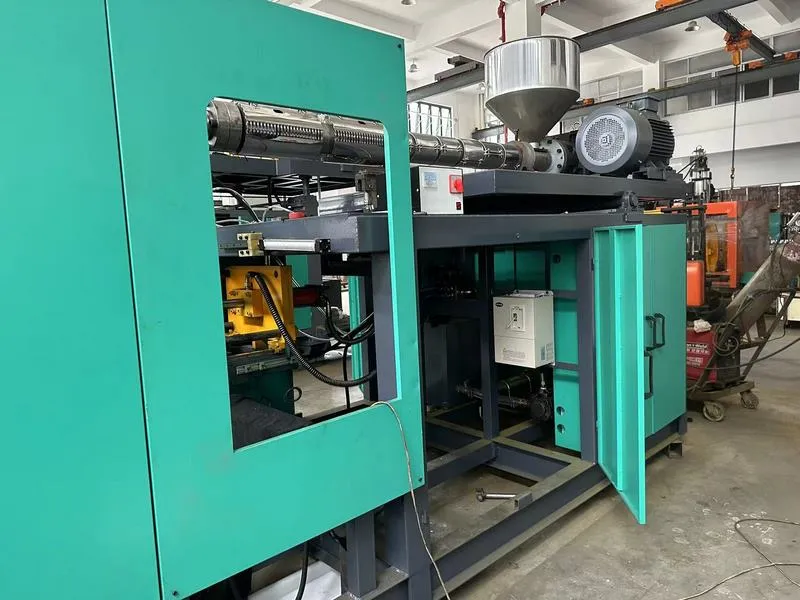

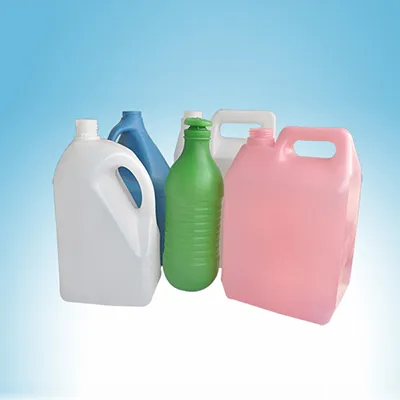

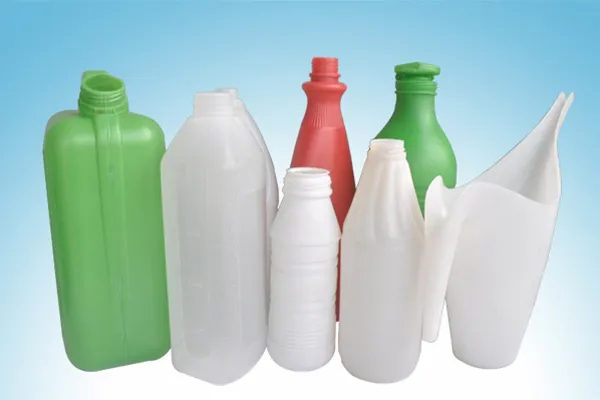

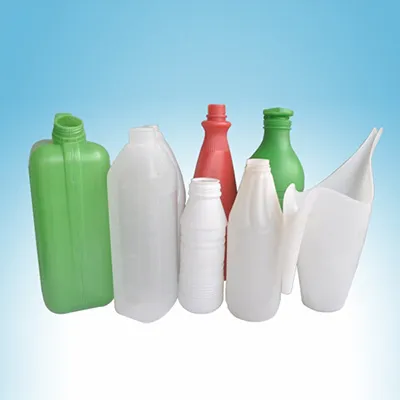

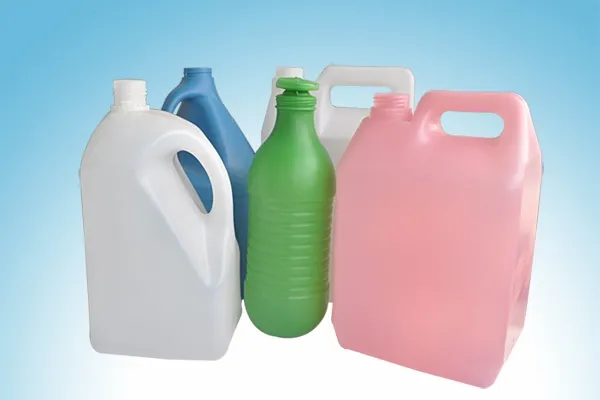

Our shampoo and detergent bottle extrusion blow moulding machines are specialized equipment for producing packaging containers for daily chemicals, including shampoo, lotion, and skincare bottles. These bottles, typically made from HDPE or PP plastics, require efficient extrusion blow moulding processes for high production. Specifically, detergent bottles require strength and corrosion resistance, thus commonly using HDPE plastic. We have extensive experience and a professional technical team for shampoo and detergent bottle extrusion blow moulding machines, satisfying our customers’ diverse needs.

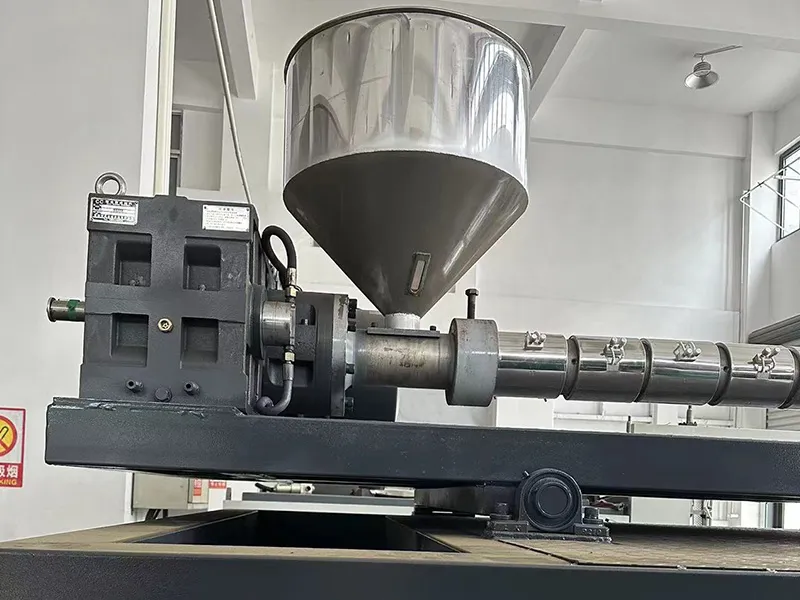

Precise temperature control is crucial during plastic melting and forming, impacting product uniformity and strength. Our machines use high-precision temperature control systems to ensure product quality and performance.

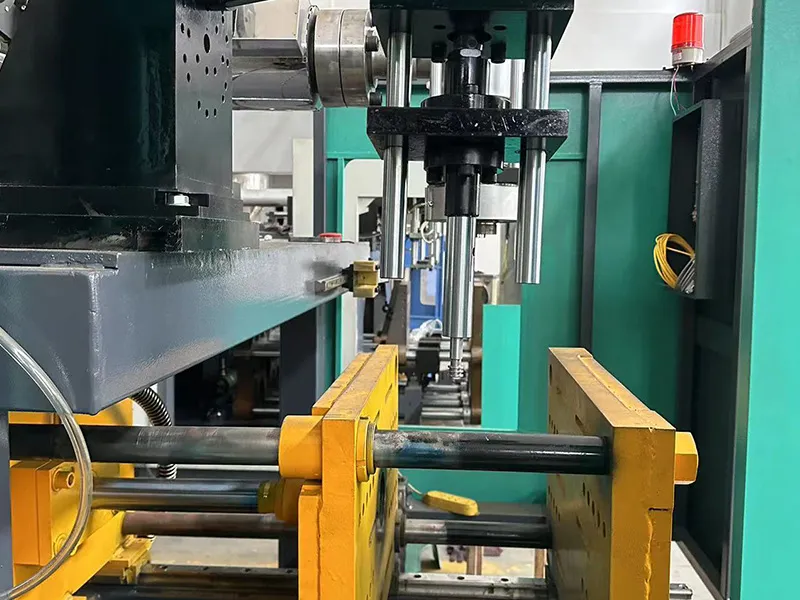

Our blowing system ensures uniformity and pressure control, guaranteeing product forming quality.

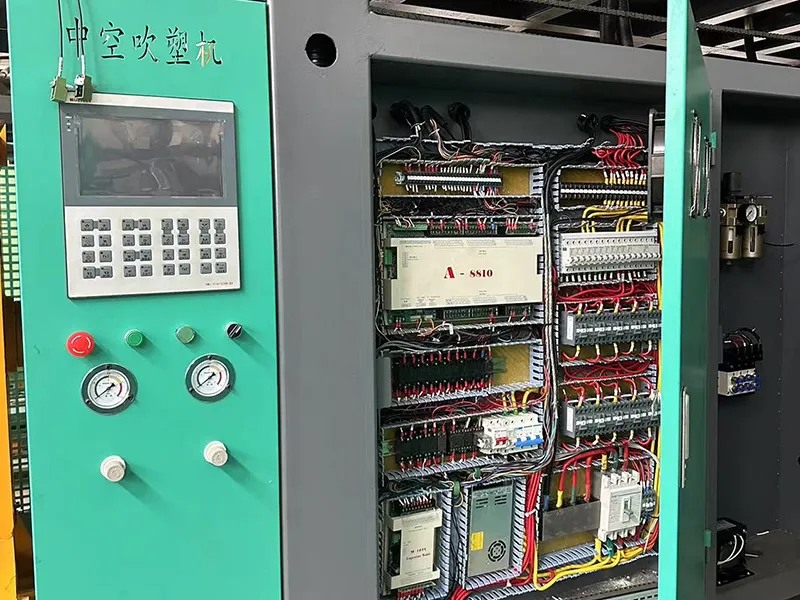

Equipped with PLC and HMI (human-machine interface), our machines offer full automatic control, enhancing production efficiency and consistency.
Our machines can produce composite material containers with different functional layers, such as barrier layers and weather-resistant layers, through multi-layer co-extrusion technology.
| Model | Unit | MW-2S1L | MW-S2L | MW-2S2L | MW-2S3L | MW-S5L | MW-S12L | MW-2S12L |
| Dry cycle | pc/h | 950×2 | 800 | 800 | 600x2 | 700 | 600 | 600×2 |
| Screw diameter | mm | 50 | 50 | 60 | 70 | 60 | 80 | 90 |
| Screw L/D ratio | L/D | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Screw motor power | kW | 11 | 11 | 15 | 22 | 15 | 30 | 37 |
| Screw heating power | kW | 2.8×3 | 2.8×3 | 3.3×3 | 5×3 | 3.3×3 | 5.5×4 | 5.5×4 |
| Number of heating zone | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
| Extruder output of HDPE | kg/hr | 30-40 | 30-40 | 50-60 | 70-85 | 50-60 | 100-120 | 130-160 |
| Oil pump drive power | kW | 5.5 | 7.5 | 7.5-11 | 11-15 | 75-11 | 11-15 | 16-22 |
| Clamping force | kN | 20 | 38 | 38 | 80 | 68 | 110 | 110 |
| Mould stroke | mm | 100-250 | 138-368 | 138-368 | 135-360 | 148-508 | 180-600 | 180-600 |
| Mould size (W×H) | mm | 100×280 | 300×320 | 300×320 | 250×430 | 370×390 | 500×510 | 500×510 |
| Moving distance | mm | 310 | 370 | 370 | 520 | 420 | 600 | 600 |
| Max. die diameter | mm | 35 | 90 | 90 | 90 | 160 | 220 | 220 |
| Die Heating power | kW | 1.5-3 | 1.8-3.5 | 1.8- 3.5 | 3.5- 4.3 | 3.5- 4.3 | 4.4- 5.5 | 4.4-5.5 |
| Blowing pressure | MPa | 0.6-0.8 | 0.6-0.8 | 0.6- 0.8 | 0.6- 0.8 | 0.6- 0.8 | 0.6- 0.8 | 0.6-0.8 |
| Air volume | min | 0.3 | 0.4 | 0.4 | 0.8 | 0.6 | 0.6 | 0.8 |
| Coolingwater pressure | MPa | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 |
| Water consumption | L/min | 40 | 35 | 50 | 60 | 55 | 60 | 70 |
| Machine weight | ton | 2.5 | 2.78 | 4.5 | 4.8 | 4.8 | 7.8 | 11.2 |
| Machine dimensions (L×W×H) | m | 2.5×1.6×2 | 3×1.6×2.1 | 3×1.6×2.1 | 3.5×2.1×2.1 | 3.5×1.8×2.1 | 3.3×3.3×2.6 | 3.5×3.5×2.6 |
Reach out to us to request detailed information about our molding machines to find the right fit for you!
